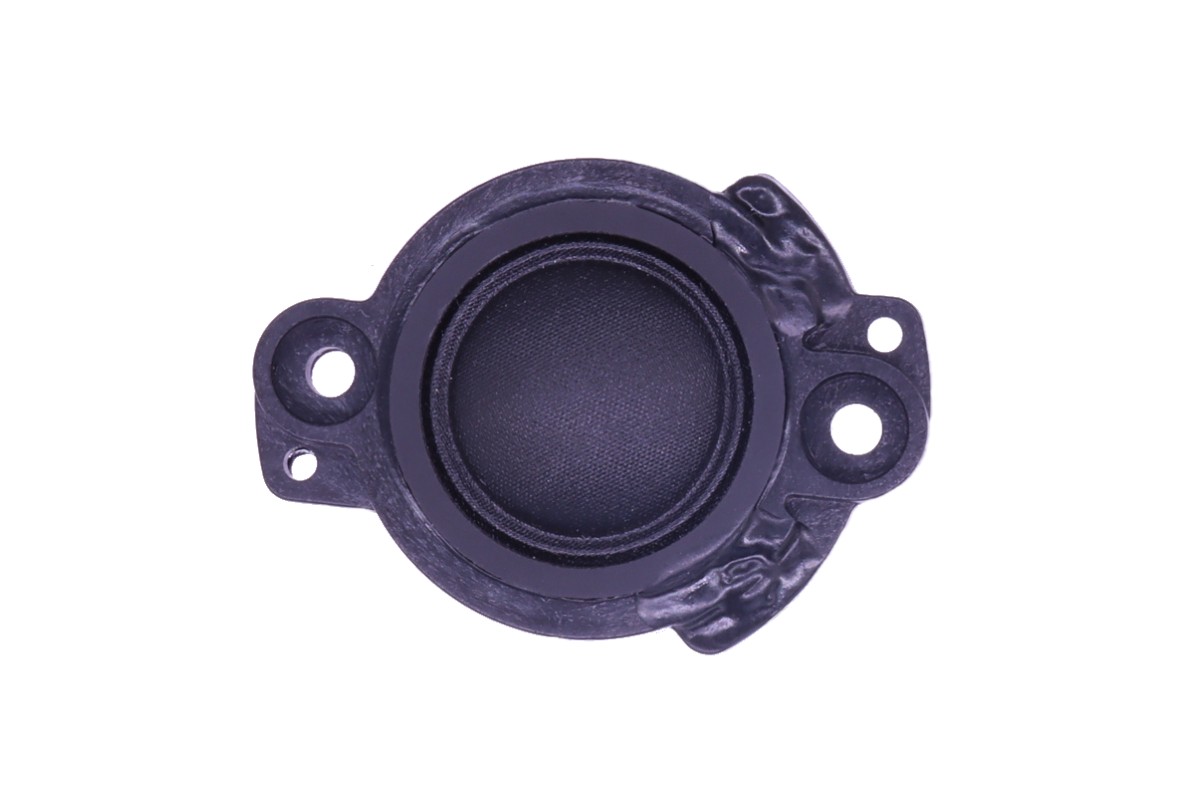

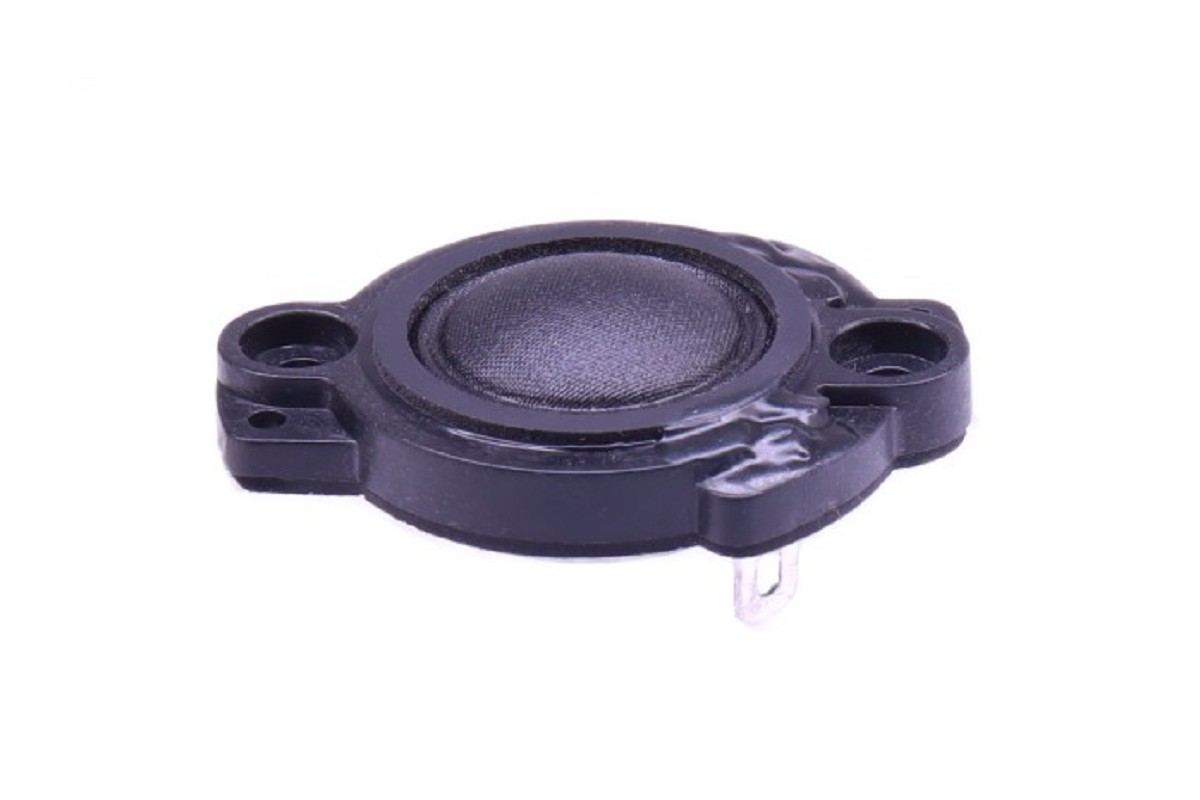

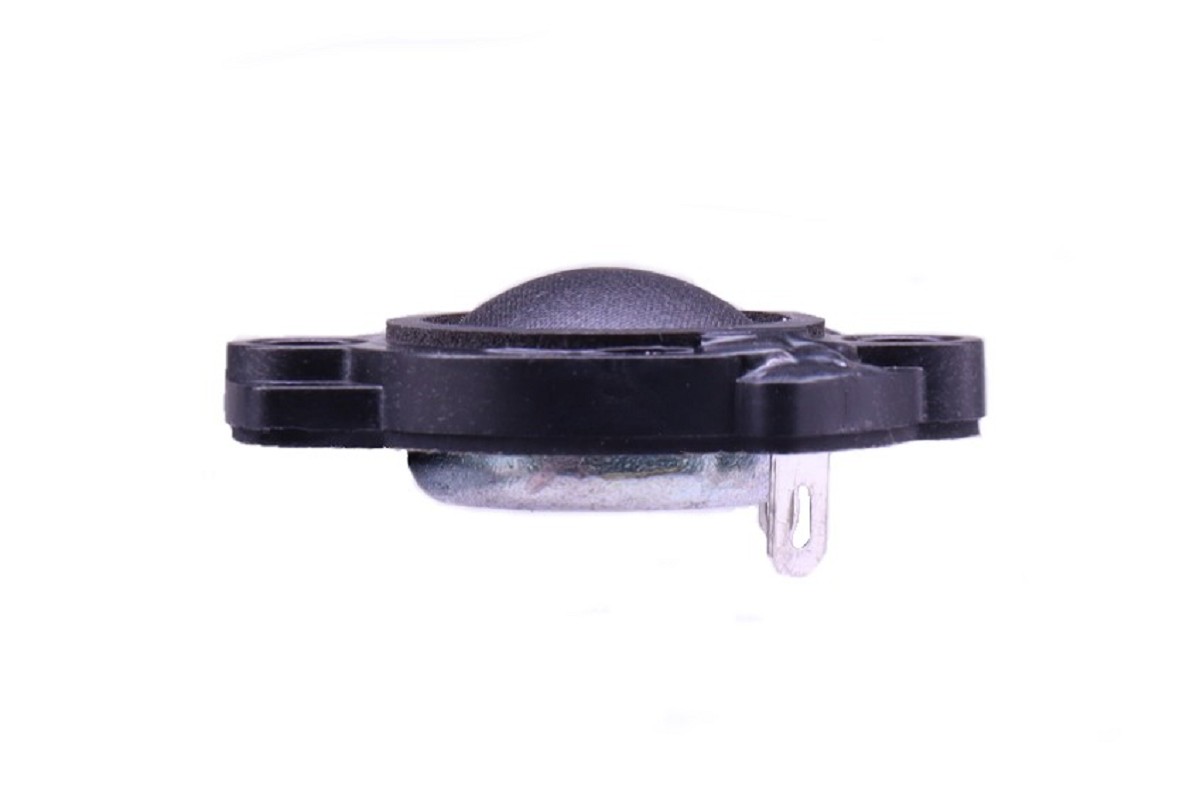

0.6” textile Dome Tweeter
ASDDL0513-0401
Features
Plastic Frame
0.6” PESVW Voice Coil, Aluminum Former
Textile Diaphragm
Neodymium Magnet Motor System
Power Handling with 2nd HP Filter @ 4000Hz
Parameters
Size
0.6 Inch
Fs
1740 Hz
Re
4.2 Ohms
Sensitivity
86 dB
Quality Factor
2.15 Qts
Rated Power
10 W
This compact 4 ohm dome tweeter have been newly designed with 0.6 inch PESVCCAW voice coil, upgraded IP67 grade Textile dome Diaphragm, and Neodymium Ferro Fluid magnet motor system to provide excellent sound experience. This splendid unit is the new benchmark for outdoor portable audio.
Family
Range
Characteristics
| T-S Parameters | |
|---|---|
| Resonance frequency [fs] | 1742 Hz |
| Mechanical Q factor [Qms] | 4.819 |
| Electrical Q factor [Qes] | 3.873 |
| Total Q factor [Qts] | 2.147 |
| Force factor [Bl] | 1.069 Tm |
| Mechanical resistance [Rms] | 0.218 kg/s |
| Moving mass [Mms] | 0.096 g |
| Compliance [Cms] | 0.087 mm/N |
| Effective diaph. diameter [D] | 19.3 mm |
| Effective piston area [Sd] | 2.93 cm² |
| Equivalent volume [Vas] | 0.0011 l |
| Sensitivity (2.83V/1m) | 86 dB |
| Ratio Bl/√Re | 0.522 N/√W |
| Ratio fs/Qts | 811.3 Hz |
| Electrical Data | |
|---|---|
| Nominal impedance [Zn] | 4 Ω |
| Minimum impedance [Zmin] | 4.2 Ω |
| Maximum impedance [Zo] | 9.98 Ω |
| DC resistance [Re] | 4.20 Ω |
| Voice coil inductance [Le] | 0.030 mH |
| Power Handling | |
|---|---|
| 100h RMS noise test (IEC 18.4) | 10 W |
| Long-term max power (IEC 18.2) | - W |
| Voice Coil & Magnet Data | |
|---|---|
| Voice coil diameter | 16.4 mm |
| Voice coil height | 2.1 mm |
| Voice coil layers | 2 |
| Height of gap | 2 mm |
| Linear excursion | ± 0.05 mm |
| Max mech. excursion | ± - mm |
| Unit weight | 0.025 kg |
