AUGDL2069-JD01
AUGDL2069-JD01
Standard

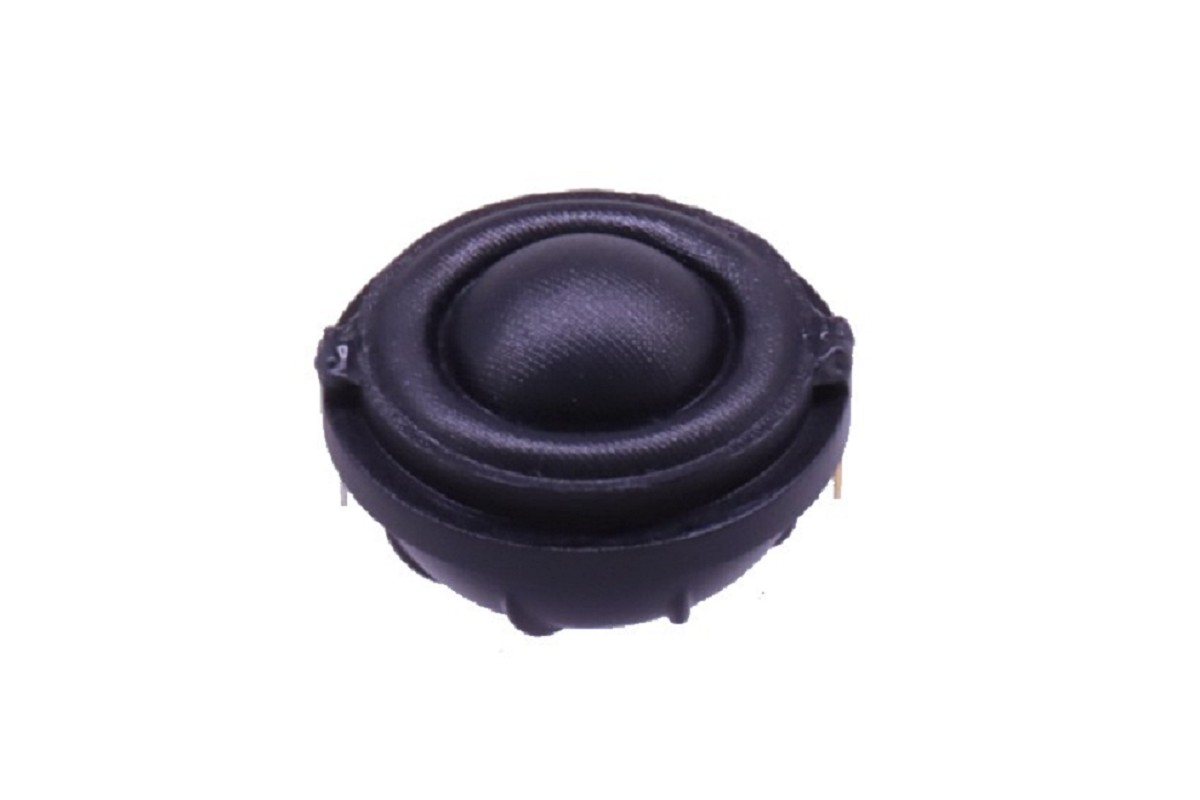

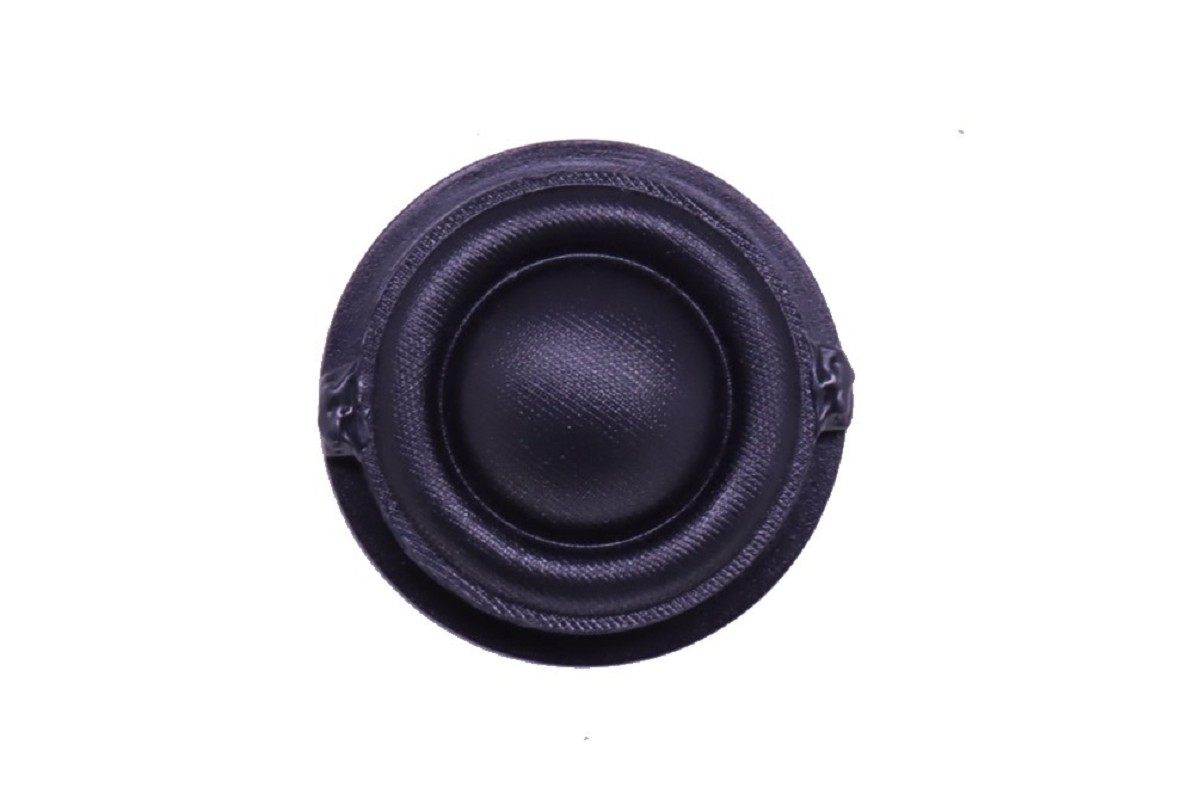

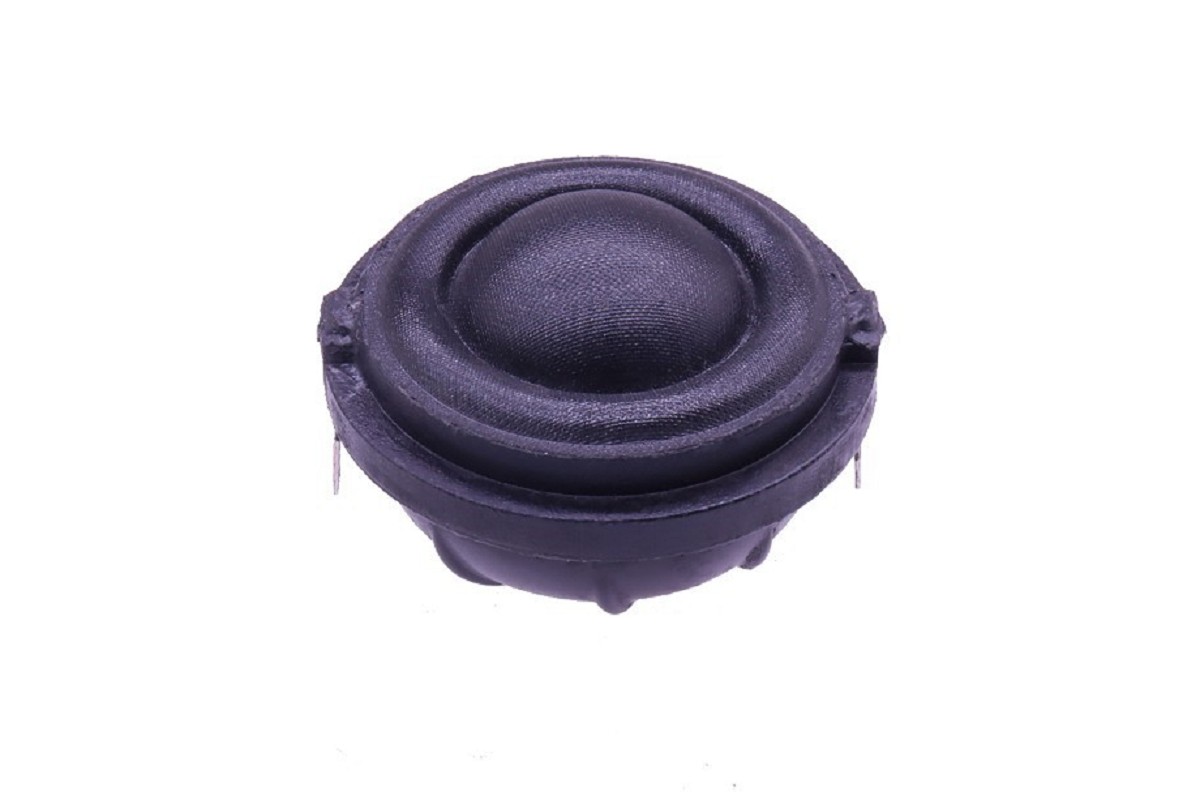

0.8” Textile Dome Tweeter

AUGDL2069-JD01

Features
0.8”, Plastic Frame
0.8” PESVW Voice Coil , Aluminum Former
Silk Diaphragm , FIXED Surround
Neodymium Magnet Motor System
Copper-shorting Ring
Size
0.8 Inch
Fs
900 Hz
Re
7.2 Ohms
Sensitivity
83 dB
Quality Factor
1.9 Qts
Rated Power
5 W
  • Description
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

This is a 0.8 inch 8 ohm driver, it is a tweeter features 0.8 inch voice coil with PESVW. In term of suspension system, dome is consisted by textile material. In term of magnet motor system, magnet is consisted by Neodymium material. It can be used on Soundbar model.

Family
Range

T-S Parameters
Resonance frequency [fs]  900 Hz
Mechanical Q factor [Qms] 6.84
Electrical Q factor [Qes] 2.64
Total Q factor [Qts]  1.9
Force factor [Bl] 1.63 Tm
Mechanical resistance [Rms] 0.142 kg/s
Moving mass [Mms]  0.172 g
Compliance [Cms] 0.183 mm/N
Effective diaph. diameter [D]  24.0 mm
Effective piston area [Sd] 4.52 cm²
Equivalent volume [Vas] 0.0053 l
Sensitivity (2.83V/1m)  83 dB
Ratio Bl/√Re 0.607 N/√W
Ratio fs/Qts 473.68 Hz
Electrical Data
Nominal impedance [Zn]  8 Ω
Minimum impedance [Zmin]  7.3 Ω
Maximum impedance [Zo] 14.2 Ω
DC resistance [Re] 7.2 Ω
Voice coil inductance [Le]  0.024 mH
Power Handling
100h RMS noise test (IEC 18.4) 5 W
Long-term max power (IEC 18.2) - W
Voice Coil & Magnet Data
Voice coil diameter 19.4 mm
Voice coil height 1.8 mm
Voice coil layers 2
Height of gap 2.5 mm
Linear excursion ± 0.35 mm
Max mech. excursion ± - mm
Unit weight 0.042 kg
