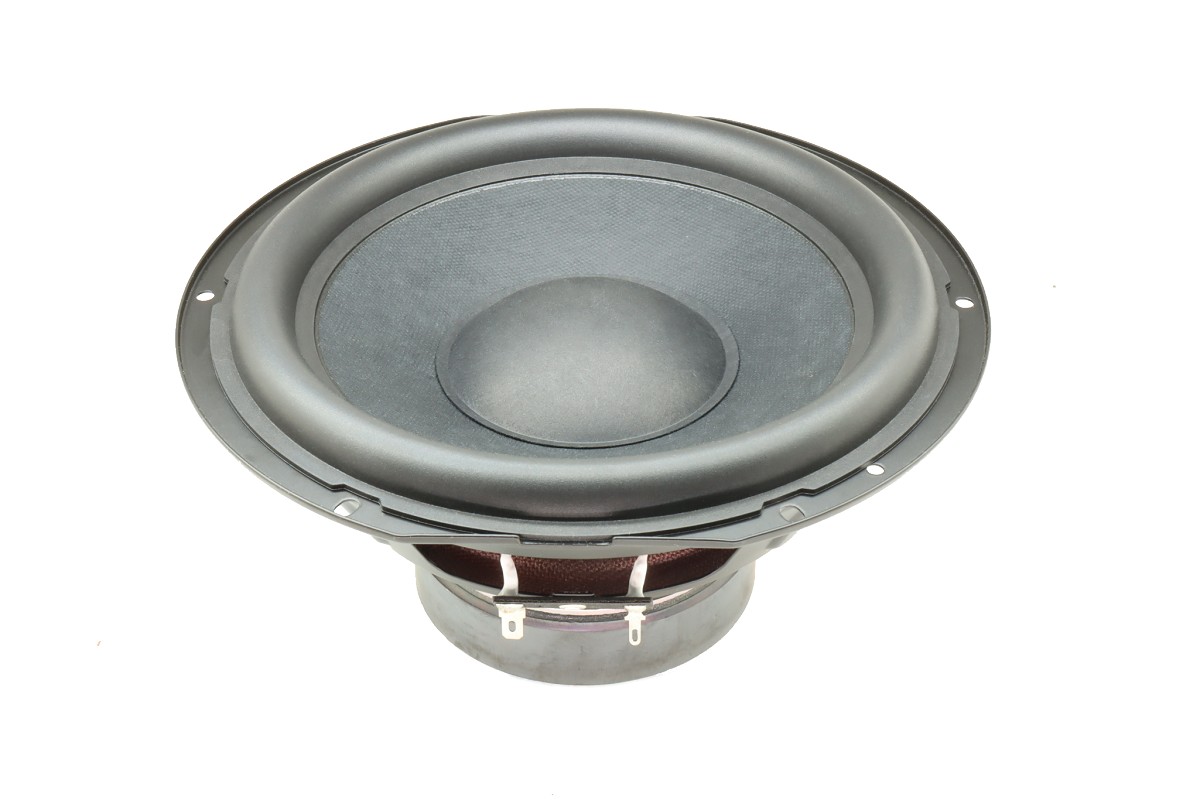

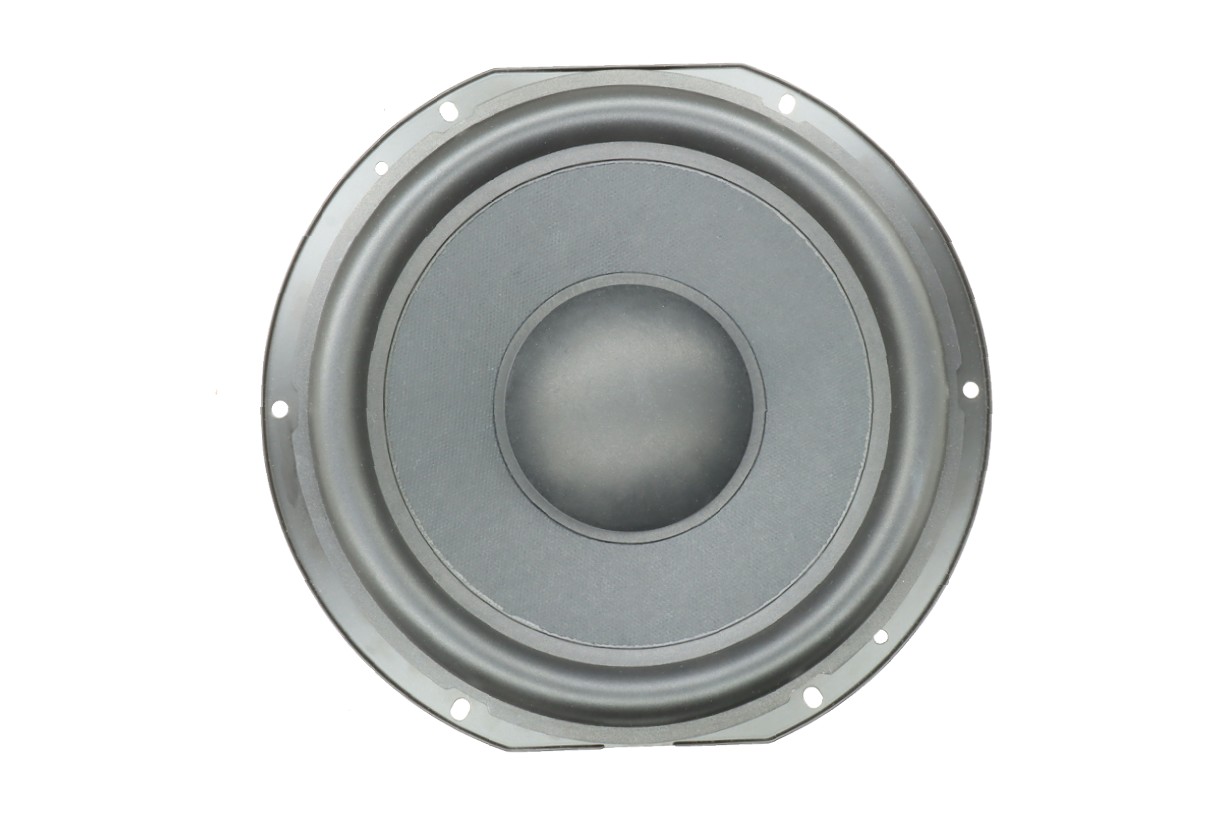

8” Paper Cone Subwoofer
ASDWD6099-0401
Features
8”, Steel Frame
1.4” PESVW Voice Coil, TIL Former
Paper Cone, Rubber Surround
Ferrite Magnet Motor System
Parameters
Size
8 Inch
Fs
41 Hz
Re
3.36 Ohms
Sensitivity
88 dB
Quality Factor
0.53 Qts
Rated Power
100 W
The ultimate 8 inch 4 ohm Subwoofer features 1.4 inch PESVW voice coil, Rubber surround with customized Paper cone, and Ferrite magnet motor system. It is the greatest usages for subwoofer models.
Family
Range
| T-S Parameters | |
|---|---|
| Resonance frequency [fs] | 41 Hz |
| Mechanical Q factor [Qms] | 8.73 |
| Electrical Q factor [Qes] | 0.57 |
| Total Q factor [Qts] | 0.53 |
| Force factor [Bl] | 8.64 Tm |
| Mechanical resistance [Rms] | 1.45 kg/s |
| Moving mass [Mms] | 49 g |
| Compliance [Cms] | 0.3 mm/N |
| Effective diaph. diameter [D] | 165 mm |
| Effective piston area [Sd] | 213.82 cm² |
| Equivalent volume [Vas] | 19.7 l |
| Sensitivity (2.83V/1m) | 88 dB |
| Ratio Bl/√Re | 4.71 N/√W |
| Ratio fs/Qts | 77.7 Hz |
| Electrical Data | |
|---|---|
| Nominal impedance [Zn] | 4 Ω |
| Minimum impedance [Zmin] | 4.47 Ω |
| Maximum impedance [Zo] | 40 Ω |
| DC resistance [Re] | 3.36 Ω |
| Voice coil inductance [Le] | 1.19 mH |
| Power Handling | |
|---|---|
| 100h RMS noise test (IEC 18.4) | 100 W |
| Long-term max power (IEC 18.2) | - W |
| Voice Coil & Magnet Data | |
|---|---|
| Voice coil diameter | 35.5 mm |
| Voice coil height | 17.4 mm |
| Voice coil layers | 4 |
| Height of gap | 6 mm |
| Linear excursion | ± 5.7 mm |
| Max mech. excursion | ± - mm |
| Unit weight | 1.68 kg |
