Standard

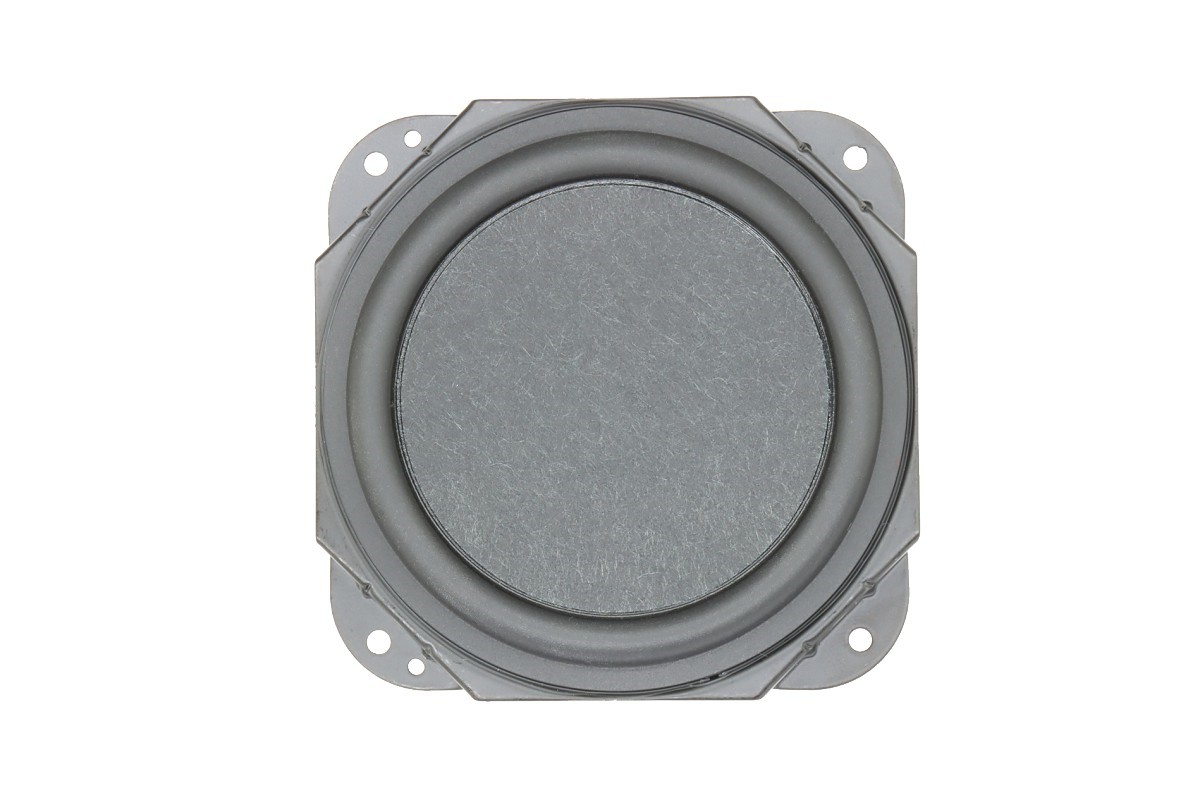

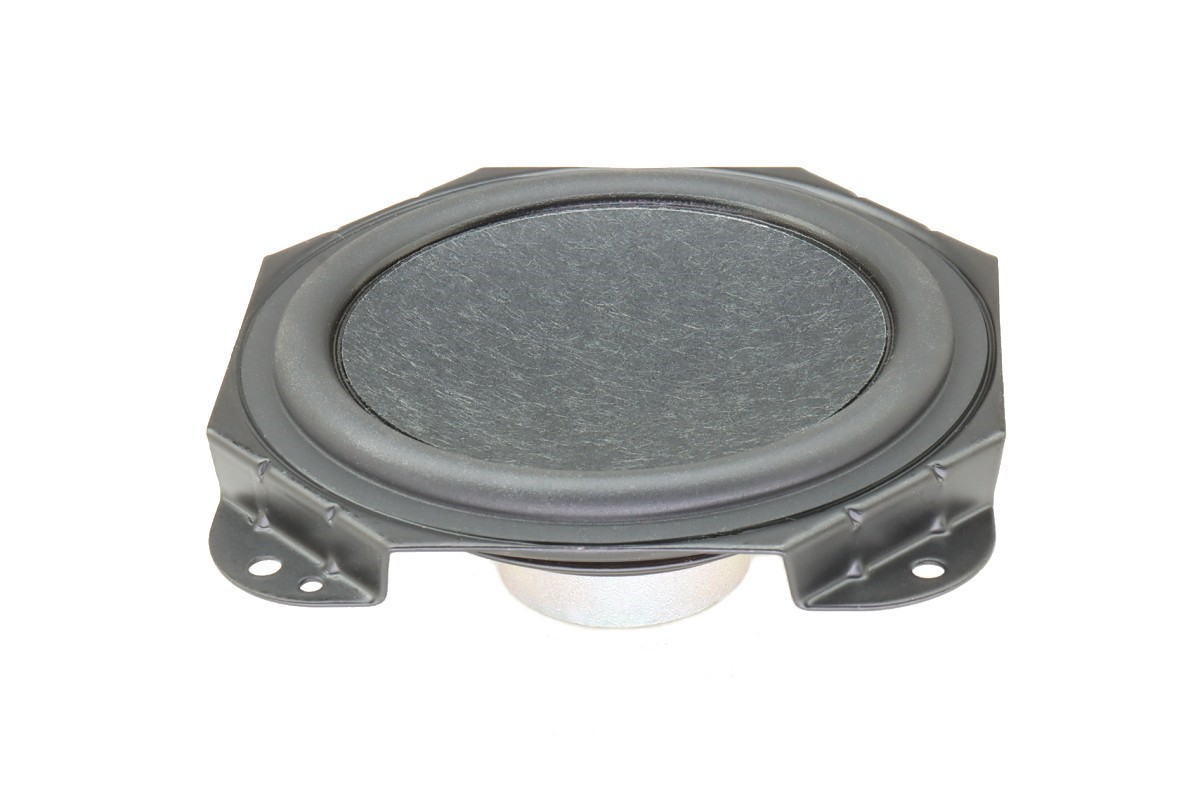

3” Paper Cone Woofer
ASDWD6090-0601
Features
3”, Steel Frame
0.8” PESVW Voice Coil, Aluminum Former
Paper Cone, Rubber Surround
Dual Neodymium Magnet Motor System
Parameters
Size
3 Inch
Fs
125 Hz
Re
5.09 Ohms
Sensitivity
87 dB
Quality Factor
0.48 Qts
Rated Power
15 W
This ultimate 3 inch woofer unit have been newly designed with customized Steel frame, 0.8 inch PESVW voice coil, upgraded Pulp cone and Neodymium magnet motor system to provide great heavy bass sound quality with low distortions. This driver is the new benchmark for strong woofer taste audiences.
Family
Range
| T-S Parameters | |
|---|---|
| Resonance frequency [fs] | 125.8 Hz |
| Mechanical Q factor [Qms] | 4.787 |
| Electrical Q factor [Qes] | 0.535 |
| Total Q factor [Qts] | 0.48 |
| Force factor [Bl] | 6.148 Tm |
| Mechanical resistance [Rms] | 0.830 kg/s |
| Moving mass [Mms] | 5.030 g |
| Compliance [Cms] | 0.318 mm/N |
| Effective diaph. diameter [D] | 68 mm |
| Effective piston area [Sd] | 36.32 cm² |
| Equivalent volume [Vas] | 0.5941 l |
| Sensitivity (2.83V/1m) | 87 dB |
| Ratio Bl/√Re | 2.725 N/√W |
| Ratio fs/Qts | 262.083 Hz |
| Electrical Data | |
|---|---|
| Nominal impedance [Zn] | 6 Ω |
| Minimum impedance [Zmin] | 5.795 Ω |
| Maximum impedance [Zo] | 41.972 Ω |
| DC resistance [Re] | 5.09 Ω |
| Voice coil inductance [Le] | 0.362 mH |
| Power Handling | |
|---|---|
| 100h RMS noise test (IEC 18.4) | 15 W |
| Long-term max power (IEC 18.2) | 30 W |
| Voice Coil & Magnet Data | |
|---|---|
| Voice coil diameter | 20.32 mm |
| Voice coil height | 6.2 mm |
| Voice coil layers | 4 |
| Height of gap | 3 mm |
| Linear excursion | ± 1.6 mm |
| Max mech. excursion | ± - mm |
| Unit weight | 0.0885 kg |
