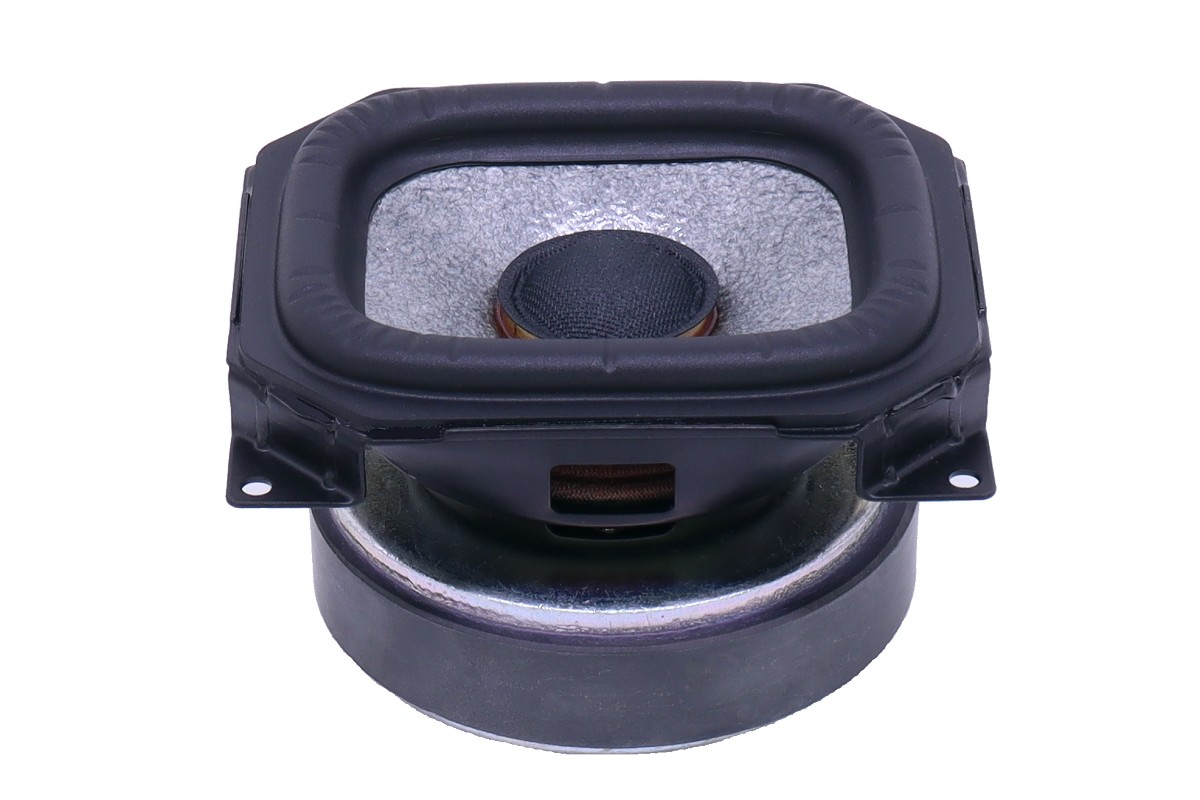

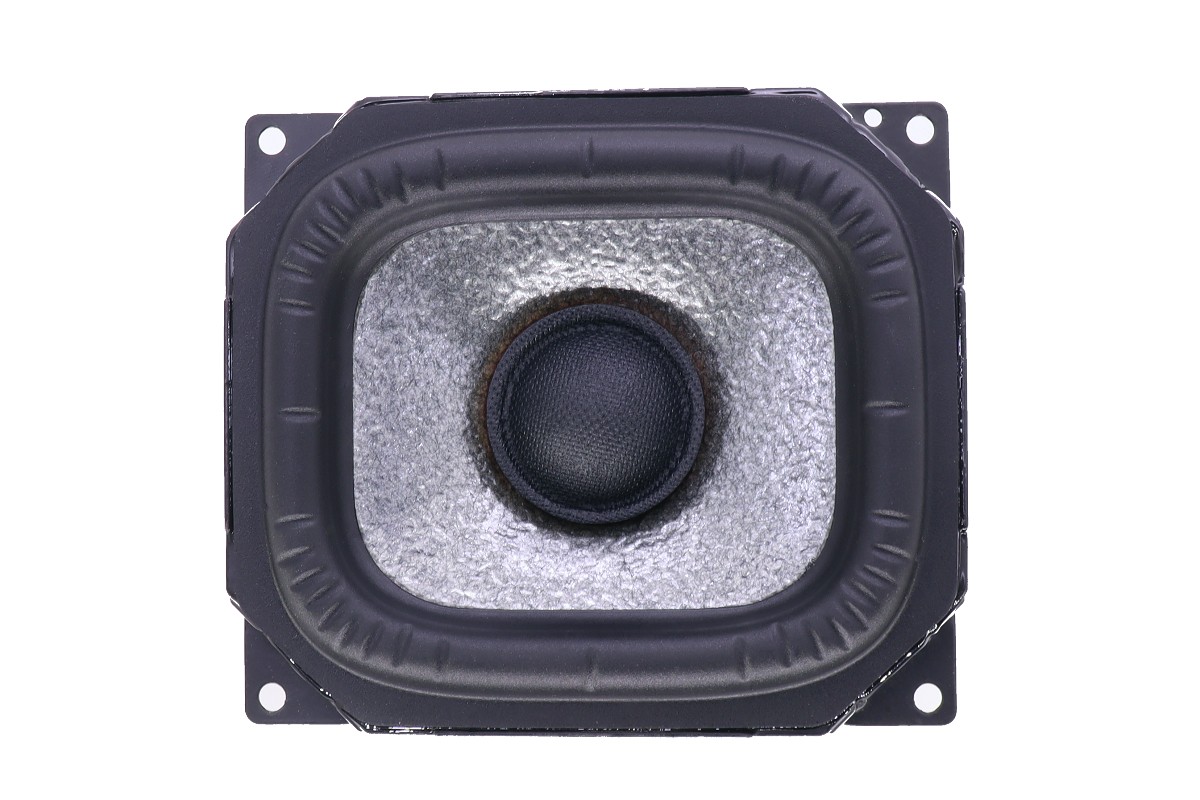

94mm x 82mm Mica Diaphragm Woofer

ASDWD4004-0601

Features
94mm x 82mm Steel Frame
1” PESVCCAW Voice Coil Aluminum Former
Mica Diaphragm Rubber Surround
Ferrite Magnet Motor System
Power Handling with Low pass filter-12dB/OCT 300Hz
Size
3 Inch
Fs
120 Hz
Re
6 Ohms
Sensitivity
86 dB
Quality Factor
0.71 Qts
Rated Power
45 W
  • Description
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

This ultimate 94mm x 82mm woofer unit have been newly designed with customized Steel frame, 1 inch PESVCCAW voice coil, upgraded Mica cone and Ferrite magnet motor system to provide great heavy bass sound quality with low distortions. This driver is the new benchmark for strong woofer taste audiences.

Family
Range

T-S Parameters
Resonance frequency [fs]  120.4Hz
Mechanical Q factor [Qms] 5.46
Electrical Q factor [Qes] 0.82
Total Q factor [Qts]  0.71
Force factor [Bl]  6.08 Tm
Mechanical resistance [Rms] 1.1 kg/s
Moving mass [Mms]  7.99 g
Compliance [Cms] 0.2 mm/N
Effective diaph. diameter [D]   -mm
Effective piston area [Sd] 43.64cm
Electrical Data
Nominal impedance [Zn]  6 Ω
Minimum impedance [Zmin]  5.5 Ω
Maximum impedance [Zo] 30.7 Ω
DC resistance [Re]  5.1Ω
Voice coil inductance [Le]   0.478mH
Power Handling
100h RMS noise test (IEC 18.4) 45W
Long-term max power (IEC 18.2) - W
Voice Coil & Magnet Data
Voice coil diameter  25.4mm
Voice coil height 13.7 mm
Voice coil layers 2+2
Height of gap 5 mm
Linear excursion ±4.35 mm
Max mech. excursion ±-mm
Unit weight 0.754 kg
