Standard

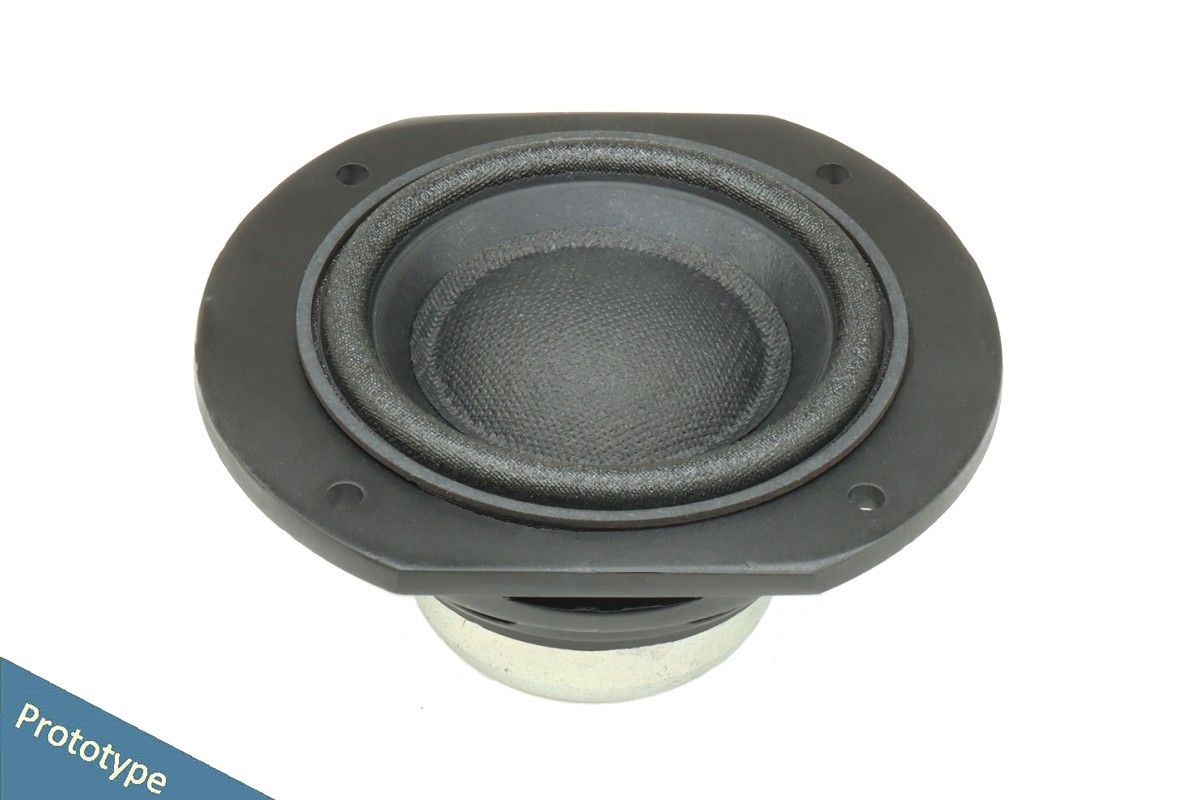

2” Paper Cone Fullrange
05A24EHC25235
Features
2”, Plastic Frame
1” PESVW Voice Coil, Aluminum Former
Paper Cone, Cloth Surround
Copper-shorting Ring
High Sensitivity
Parameters
Size
2 Inch
Fs
350 Hz
Re
5.6 Ohms
Sensitivity
86 dB
Quality Factor
0.99 Qts
Rated Power
10 W
The ultimate 2 inch, 6 ohm Plastic frame driver have been newly designed with 1 inch PESVCCAW voice coil, Upgraded Paper cone and Neodymium magnet motor system to provide wide range sound experience. This spectacular driver is the new benchmark for soundbar systems.
Family
Range
| T-S Parameters | |
|---|---|
| Resonance frequency [fs] | 349 Hz |
| Mechanical Q factor [Qms] | 5.03 |
| Electrical Q factor [Qes] | 1.23 |
| Total Q factor [Qts] | 0.99 |
| Force factor [Bl] | 4 Tm |
| Mechanical resistance [Rms] | 0.73 kg/s |
| Moving mass [Mms] | 1.69 g |
| Compliance [Cms] | 0.12 mm/N |
| Effective diaph. diameter [D] | 45 mm |
| Effective piston area [Sd] | 15.9 cm² |
| Equivalent volume [Vas] | 0.04 l |
| Sensitivity (2.83V/1m) | 86 dB |
| Ratio Bl/√Re | 1.69 N/√W |
| Ratio fs/Qts | 352 Hz |
| Electrical Data | |
|---|---|
| Nominal impedance [Zn] | 6 Ω |
| Minimum impedance [Zmin] | 6.4 Ω |
| Maximum impedance [Zo] | 22.7 Ω |
| DC resistance [Re] | 5.6 Ω |
| Voice coil inductance [Le] | 0.03 mH |
| Power Handling | |
|---|---|
| 100h RMS noise test (IEC 18.4) | 10 W |
| Long-term max power (IEC 18.2) | - W |
| Voice Coil & Magnet Data | |
|---|---|
| Voice coil diameter | 25.4 mm |
| Voice coil height | 5.2 mm |
| Voice coil layers | 2 |
| Height of gap | 2.5 mm |
| Linear excursion | ± 1.35 mm |
| Max mech. excursion | ± - mm |
| Unit weight | 0.112 kg |
