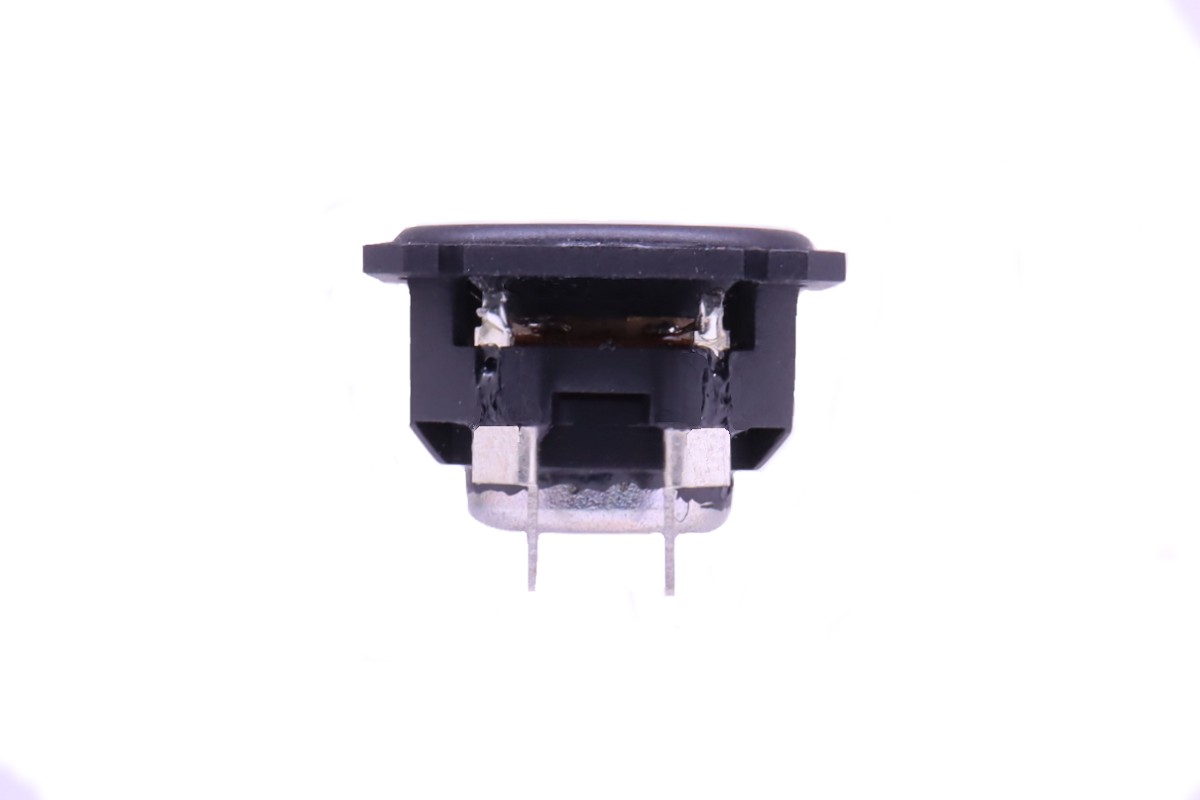

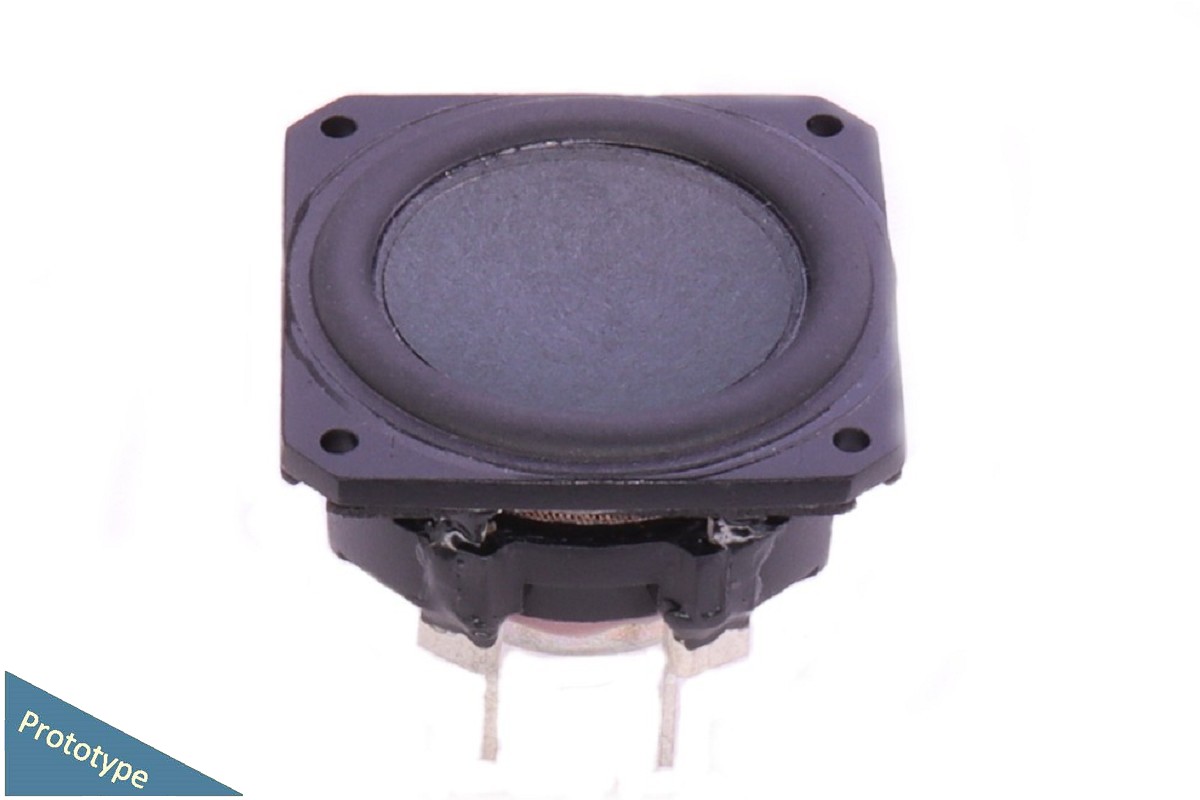

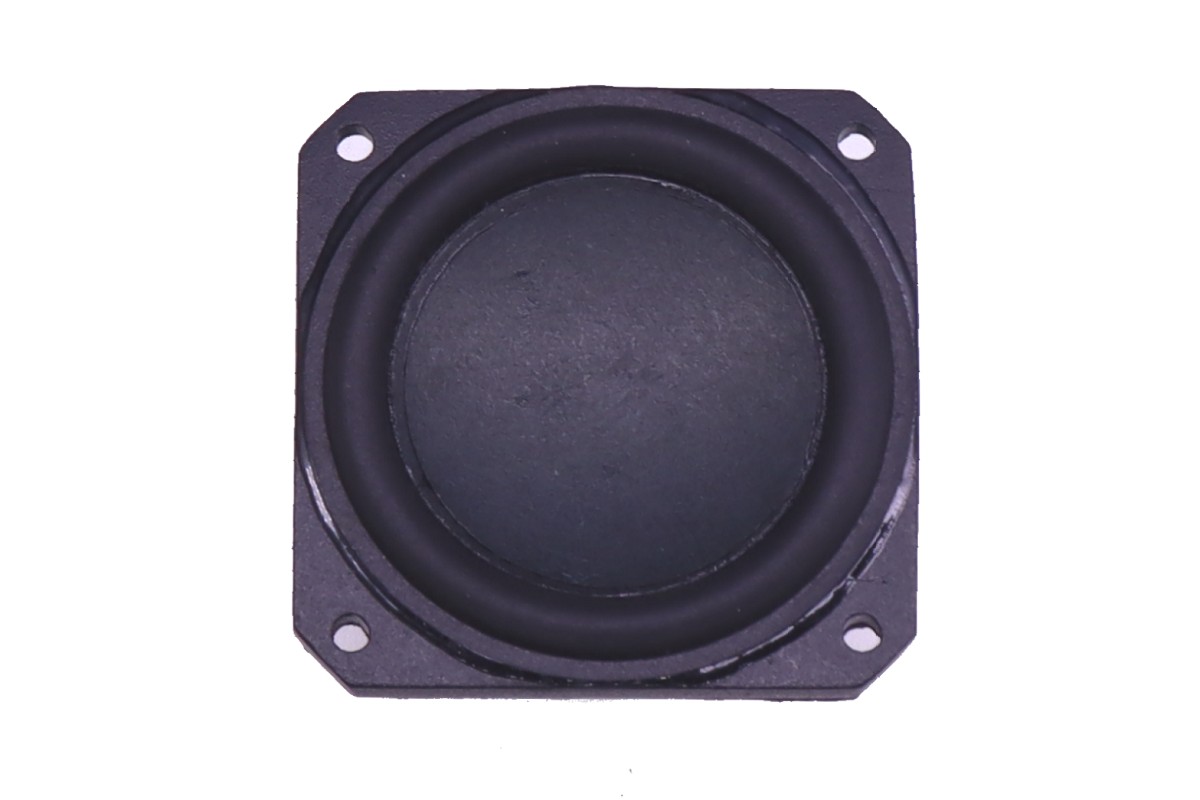

0.8” Aluminum Cone Fullrange

AUGWL1073-JN01

Features
0.8”, Plastic Frame
0.8” PESVW Voice Coil , Aluminum Former
Aluminum Cone , Foam Surround
Neodymium Magnet Motor System
Copper-shorting Ring
Size
0.8 Inch
Fs
230 Hz
Re
8 Ohms
Sensitivity
80 dB
Quality Factor
0.92 Qts
Rated Power
5 W
  • Description
  • Simulation
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

The ultimate 1.5inch, 8 ohm  Plastic frame driver have been newly designed with 0.6 inch PECCAW voice coil, Upgraded Aluminum  cone and Neodymium magnet motor system to provide wide range sound experience. This spectacular driver is the new benchmark for soundbar systems.

Family
Range
Characteristics
AUGWL1073-JN01

T-S Parameters
Resonance frequency [fs] 230 Hz
Mechanical Q factor [Qms] 5.85
Electrical Q factor [Qes] 1.09
Total Q factor [Qts]  0.922
Force factor [Bl] 3.23 Tm
Mechanical resistance [Rms] 0.268 kg/s
Moving mass [Mms]  0.99 g
Compliance [Cms] 0.4 mm/N
Effective diaph. diameter [D]  10.4 mm
Effective piston area [Sd] 8.55 cm²
Equivalent volume [Vas] 0.0417 l
Sensitivity (2.83V/1m)  80 dB
Ratio Bl/√Re 1.2 N/√W
Ratio fs/Qts 249.4 Hz
Electrical Data
Nominal impedance [Zn]  8 Ω
Minimum impedance [Zmin]  7.4 Ω
Maximum impedance [Zo] 33 Ω
DC resistance [Re] 7.2 Ω
Voice coil inductance [Le]  0.083 mH
Power Handling
100h RMS noise test (IEC 18.4) 5 W
Long-term max power (IEC 18.2) - W
Voice Coil & Magnet Data
Voice coil diameter 16.28 mm
Voice coil height 4.6 mm
Voice coil layers 2
Height of gap 2.5 mm
Linear excursion ± 1.05 mm
Max mech. excursion ± - mm
Unit weight 0.042 kg
