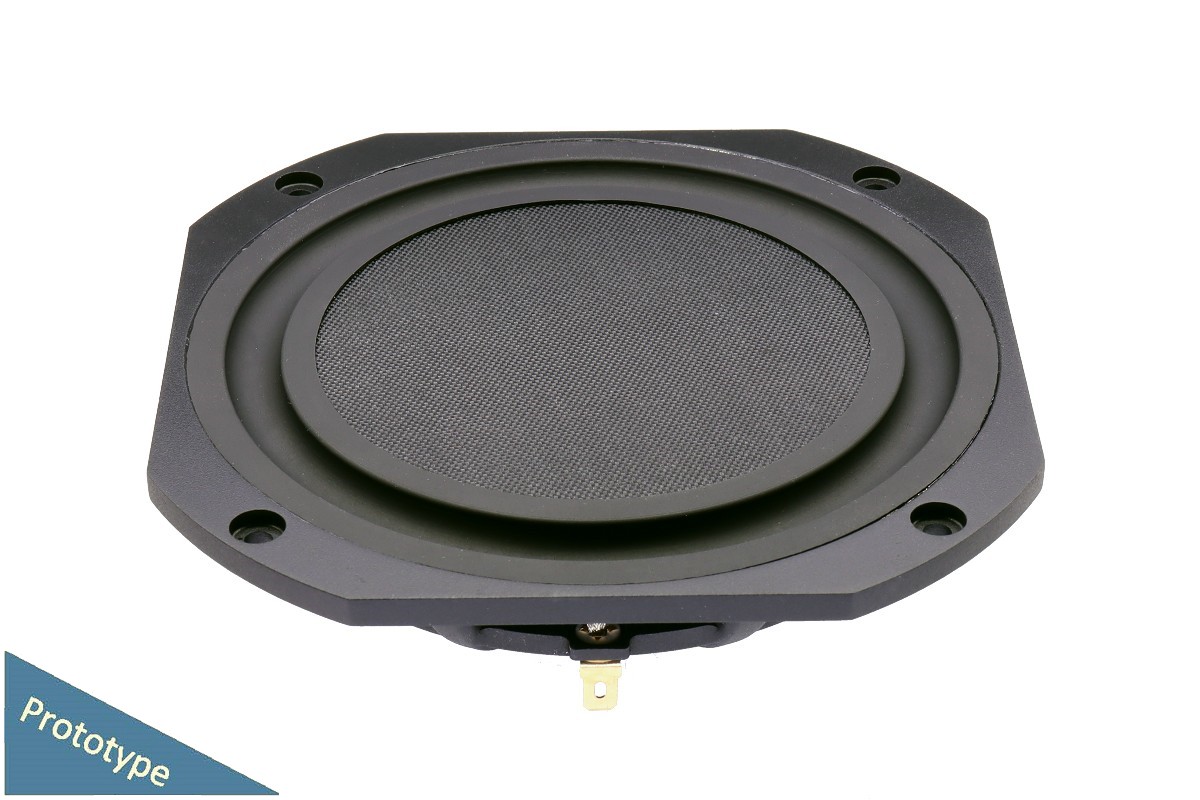

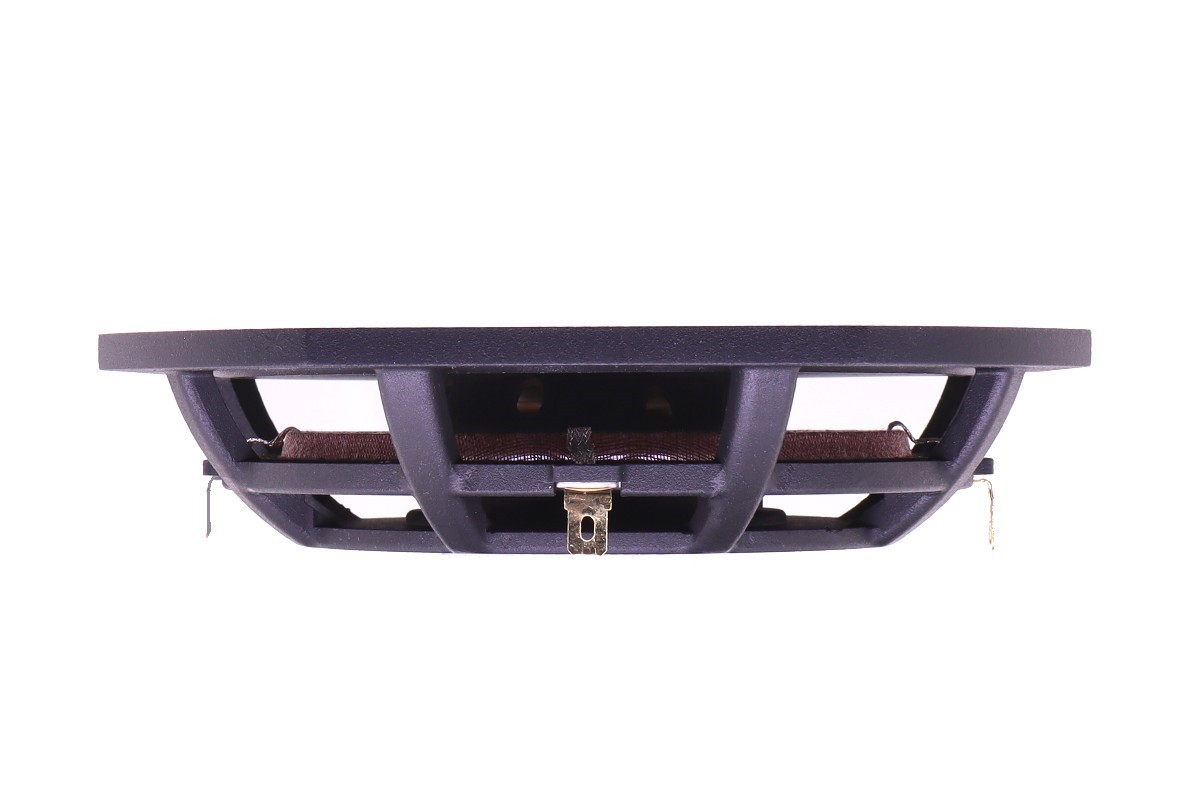

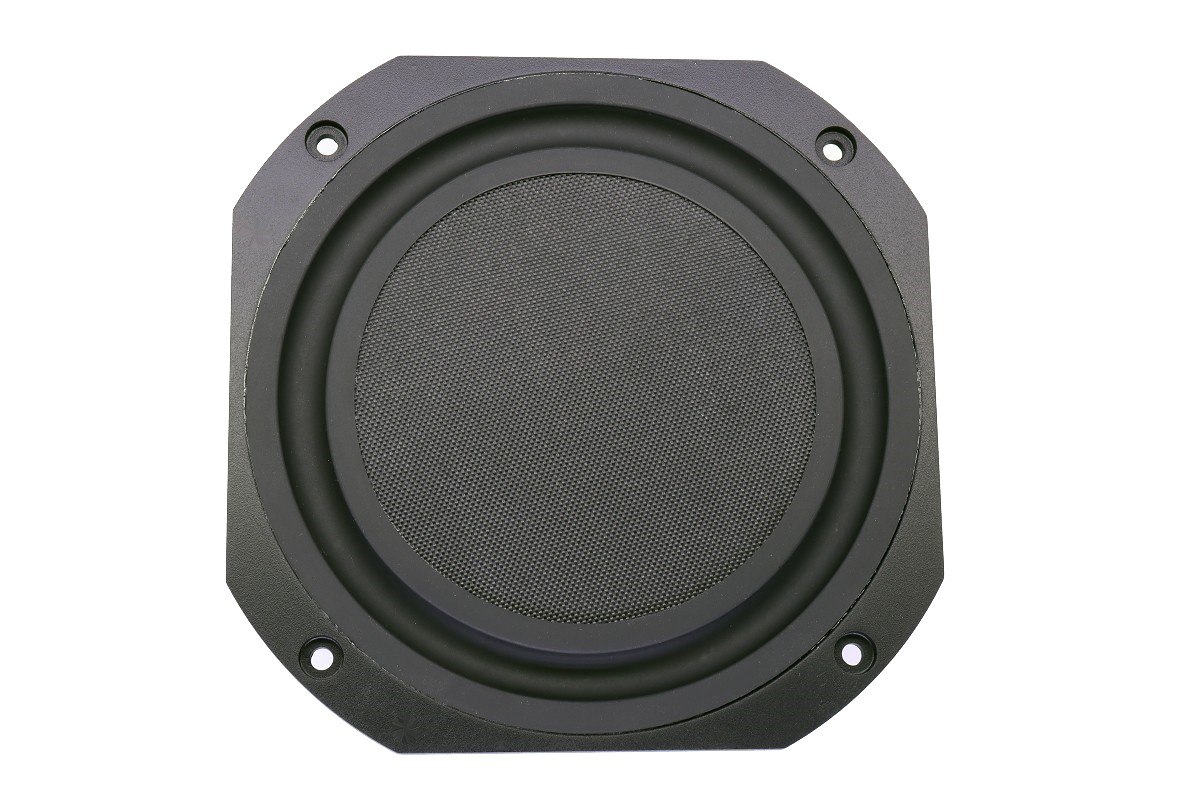

5.25" Glass Fiber Cone Woofer

AUGWL0188-JN01

Features
5.25”, Aluminum Die-cast Frame
1.2" EISVW Voice Coil, Aluminum Former
Glass Fiber Cone, Rubber Surround
Neodymium Magnet Motor System
Spider-Less, Slim Design
Size
5.25 Inch
Fs
55 Hz
Re
1.78 Ohms
Sensitivity
91 dB
Quality Factor
0.43 Qts
Rated Power
10 W
  • Description
  • Simulation
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

This newly designed slim woofer with only 30.5mm height to liberate maximum 10W RMS power. Woofer consisted with a special designed dual voice coil simply match with various of amplifier to achieve flexible impendence requirement, unique designed aluminum frame and Neodymium motor system. It can contribute balanced powerful bass with low distortion. Series size starts from 4”to 6.5” it suitable with Premium audio system applications.

Family
Range
Characteristics
AUGWL0188-JN01

T-S Parameters
Resonance frequency [fs] 57.4 Hz
Mechanical Q factor [Qms] 7.82
Electrical Q factor [Qes] 0.46
Total Q factor [Qts]  0.43
Force factor [Bl] 5.96 Tm
Mechanical resistance [Rms] 1.16 kg/s
Moving mass [Mms]  25.22 g
Compliance [Cms] 0.31 mm/N
Effective diaph. diameter [D]  109 mm
Effective piston area [Sd] 93.31 cm²
Equivalent volume [Vas] 3.76 l
Sensitivity (2.83V/1m)  91 dB
Ratio Bl/√Re 4.47 N/√W
Ratio fs/Qts 133.5 Hz
Electrical Data
Nominal impedance [Zn]  4 Ω
Minimum impedance [Zmin]  2.22 Ω
Maximum impedance [Zo] 22.4 Ω
DC resistance [Re] 1.78 Ω
Voice coil inductance [Le]  0.49 mH
Power Handling
100h RMS noise test (IEC 18.4) 10 W
Long-term max power (IEC 18.2) - W
Voice Coil & Magnet Data
Voice coil diameter 30.5 mm
Voice coil height 9.45 mm
Voice coil layers 4+4
Height of gap 4 mm
Linear excursion  ± 2.725 mm
Max mech. excursion  ± 5.8 mm
Unit weight 0.369 kg
AUGWL0188-JN01
