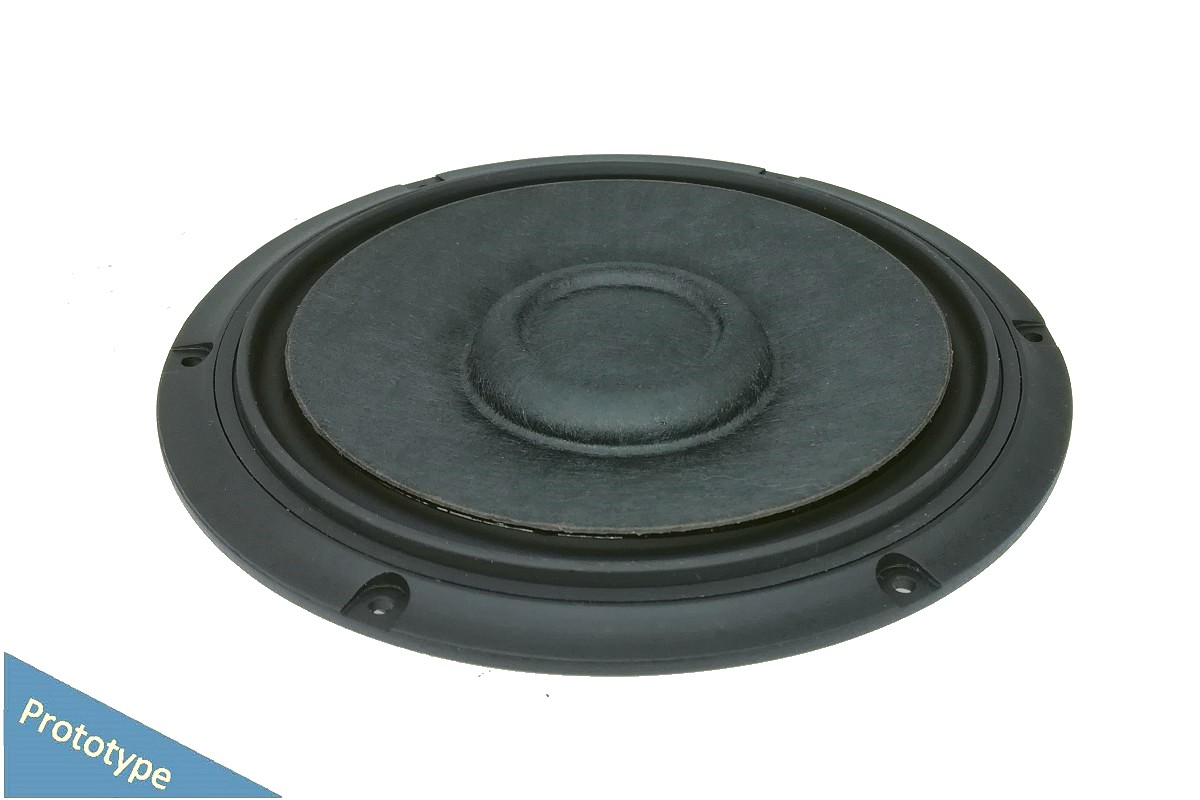

5.25" Ultra-Thin Series Woofer

AUGWL0013-JN04

Features
5.25”, Plastic Frame
1” CCAW Voice Coil, Aluminum Former
PULP and Carbon Cone Design
Neodymium Magnet Motor System
Slim Design (Patented)
Low Distortion (<3%)
Size
5.25 Inch
Fs
85 Hz
Re
8 Ohms
Sensitivity
83 dB
Quality Factor
1.06 Qts
Rated Power
5 W
  • Description
  • Simulation
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

This 5.25 inch Woofer, features 1 inch voice coil with CCAW, Aluminum former, and Neodymium magnet motor system. The main cone body uses PULP with the carbon fiber to make sure the driver has a better stiffness and lower distortion. What’s more, U-yoke is embedded in the bracket to reduce overall height without affecting amplitude, and the overall design meets the requirements for ultra-thin performance.

Family
Range
AUGWL0013-JN04

T-S Parameters
Resonance frequency [fs] 84.4 Hz
Mechanical Q factor [Qms] 5.023
Electrical Q factor [Qes] 1.355
Total Q factor [Qts]  1.067
Force factor [Bl] 6.081 Tm
Mechanical resistance [Rms] 1.468 kg/s
Moving mass [Mms]  13.895 g
Compliance [Cms] 0.256 mm/N
Effective diaph. diameter [D]  110.5 mm
Effective piston area [Sd] 95.9 cm²
Equivalent volume [Vas] 3.3283 l
Sensitivity (2.83V/1m)  83 dB
Ratio Bl/√Re 2.332 N/√W
Ratio fs/Qts 79.48 Hz
Electrical Data
Nominal impedance [Zn]  8 Ω
Minimum impedance [Zmin]  6.7 Ω
Maximum impedance [Zo] 13.32 Ω
DC resistance [Re] 6.8 Ω
Voice coil inductance [Le]  0.271 mH
Power Handling
100h RMS noise test (IEC 18.4) 5 W
Long-term max power (IEC 18.2) 10 W
Voice Coil & Magnet Data
Voice coil diameter 35.5 mm
Voice coil height 6.7 mm
Voice coil layers 4
Height of gap 4 mm
Linear excursion ± 1.35 mm
Max mech. excursion ± 4.0 mm
Unit weight 0.216 kg
