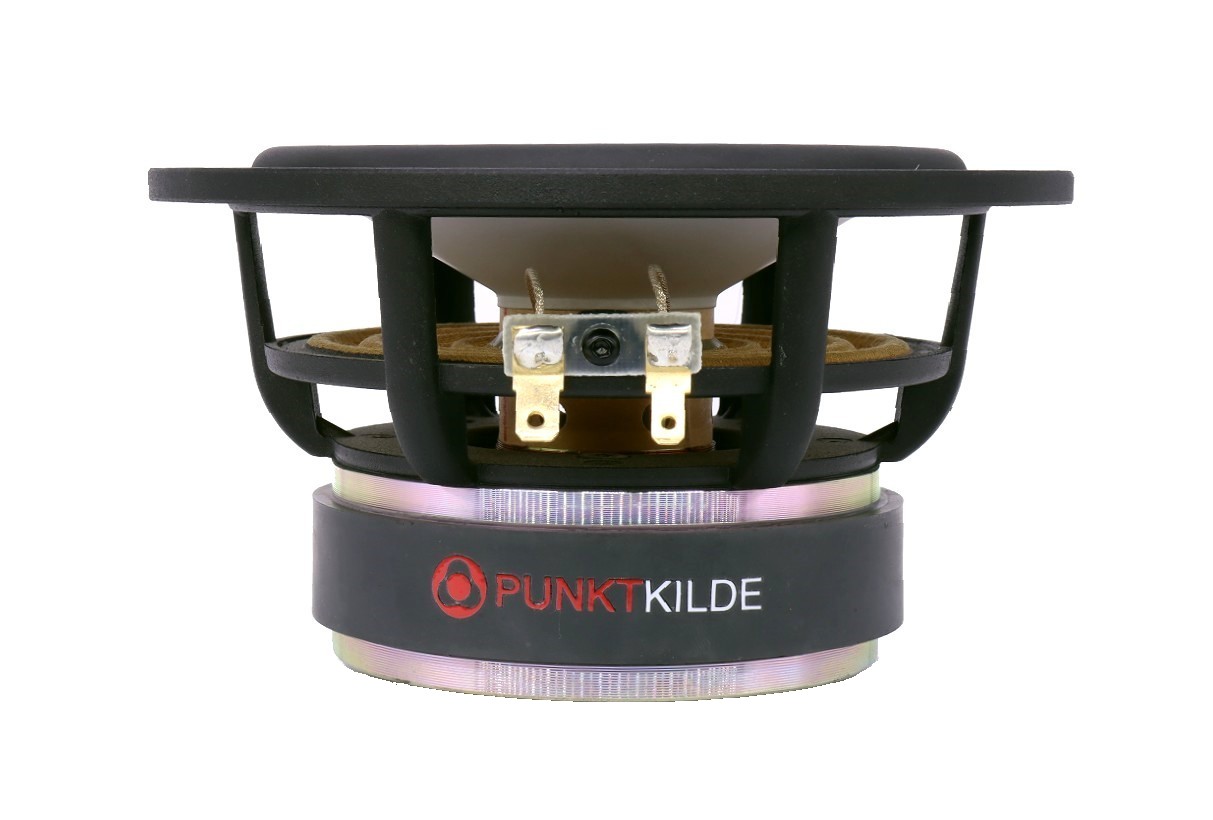

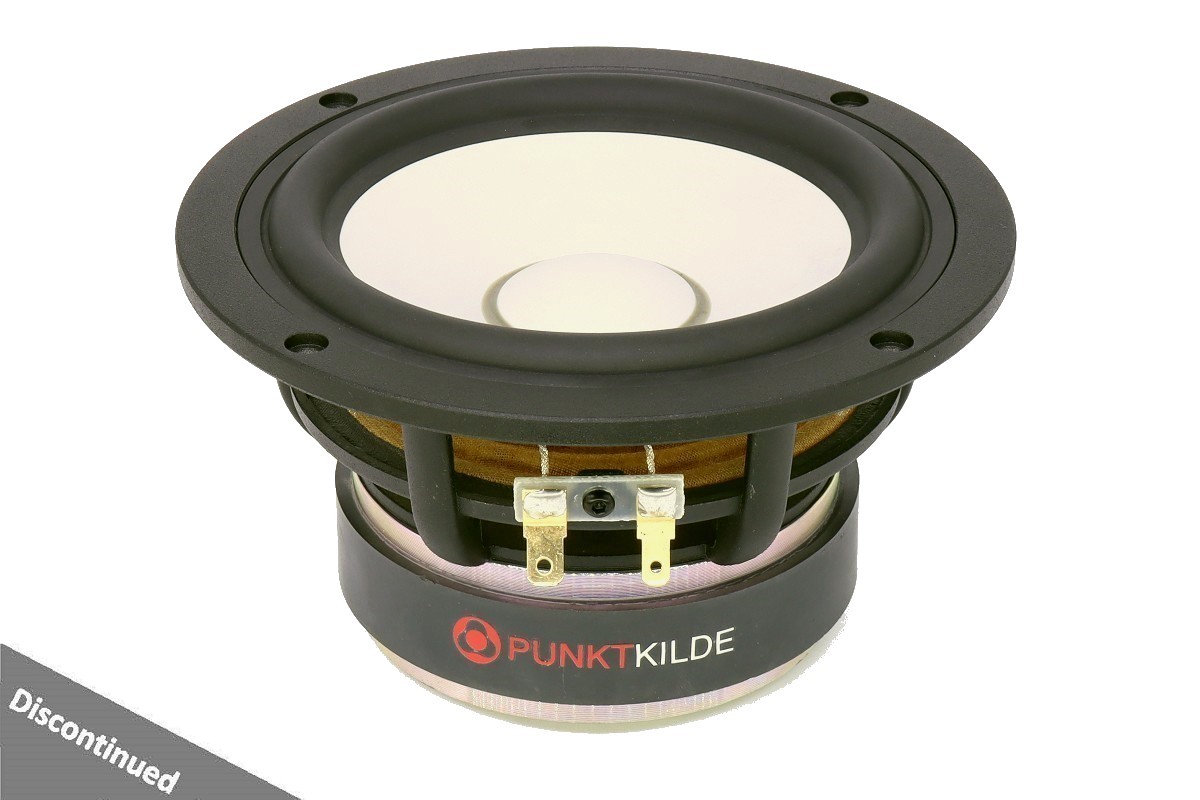

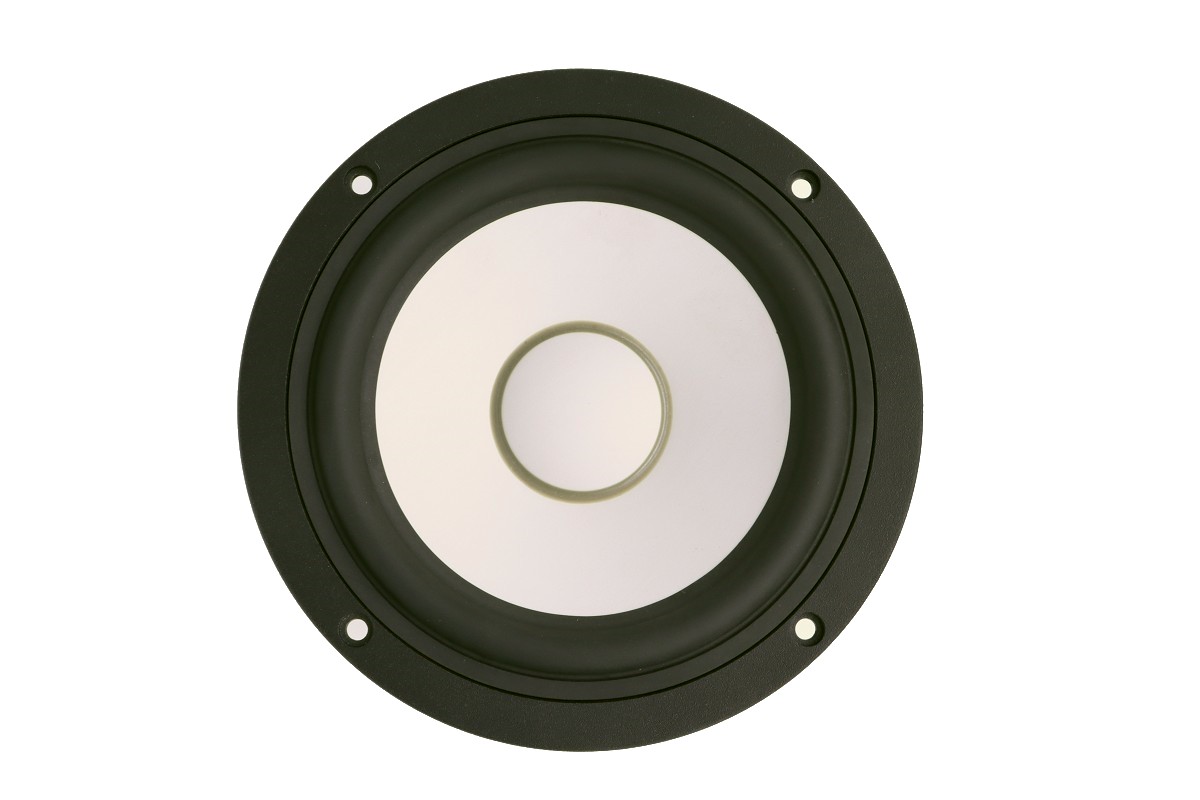

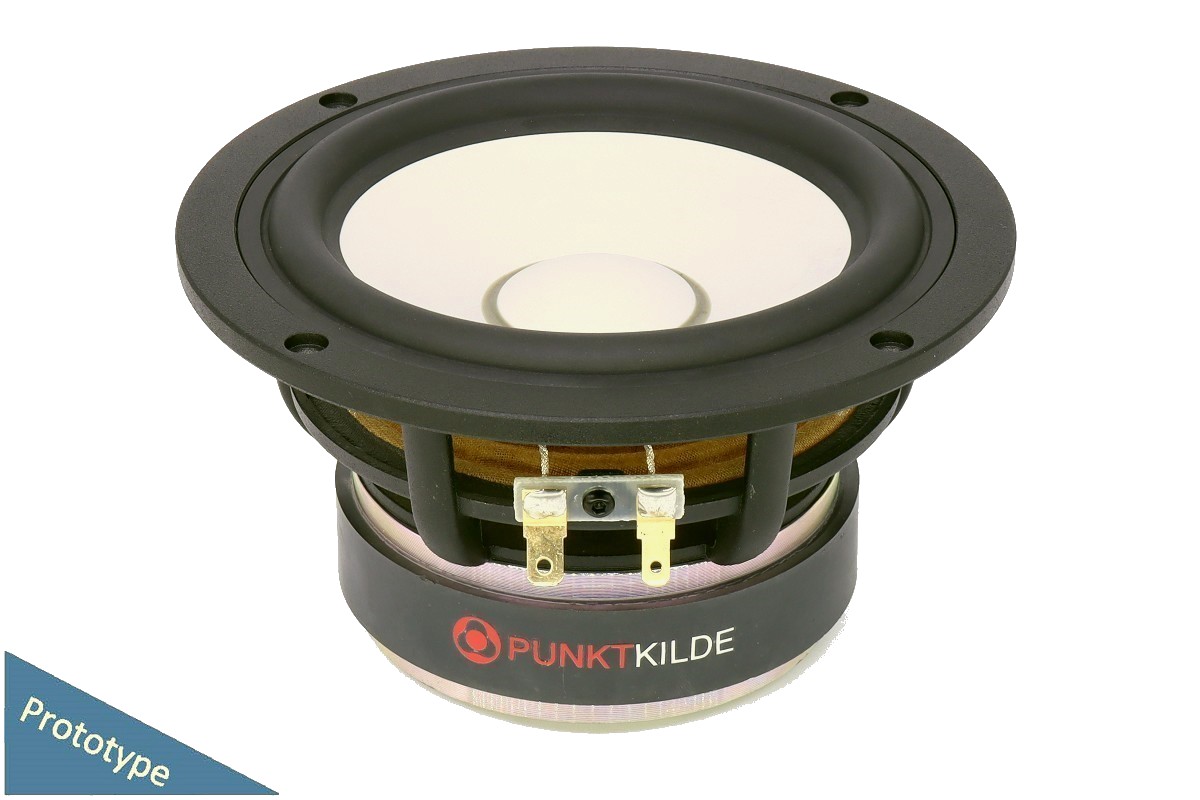

5.25” Magnesium-Lithium Woofer

AUGWL0013-JN02

Feature
5.25”, Aluminum Die-cast Frame
1.5” CCAW Voice Coil ​, Aluminum Former
Mg-Li Alloy Cone SBR Surround​
Ferrite Magnet Motor System
Target Frequency 35Hz~5KHz
Low Distortion (<1%)
Size
5.25 Inch
Fs
50 Hz
Re
4 Ohms
Sensitivity
88 dB
Quality Factor
0.34 Qts
Rated Power
50 W
  • Description
  • Simulation
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

This 5.25 inch Aluminum Alloy Woofer, Aluminum Die-Cast Frame with Mg-Li Alloy cone. It has good
process ability and high yield for mass production. Because of this special raw material structure and
unique processing technology, from magnesium lithium metal foil, the attributes of Magnesium Lithium
offer high strength, good rigidity, good heat resistance, low density and so on.

Family
Range
Characteristics
AUGWL0013-JN02

Frequency Response & Impedance Curve

T-S Parameters
Resonance frequency [fs] 49.9 Hz
Mechanical Q factor [Qms] 2.148
Electrical Q factor [Qes] 0.409
Total Q factor [Qts]  0.343
Force factor [Bl]  5.806Tm
Mechanical resistance [Rms]  1.79kg/s
Moving mass [Mms]   12.259g
Compliance [Cms]  0.829mm/N
Effective diaph. diameter [D]  109mm
Effective piston area [Sd]  93.31cm²
Equivalent volume [Vas] 10.21l
Sensitivity (2.83V/1m)   88 dB
Ratio Bl/√Re 3.07N/√W
Ratio fs/Qts 145.48Hz
Electrical Data
Nominal impedance [Zn]   4 Ω
Minimum impedance [Zmin]   4.5 Ω
Maximum impedance [Zo]  21.7 Ω
DC resistance [Re]  3.58 Ω
Voice coil inductance [Le]   0.069 mH
Power Handling
100h RMS noise test (IEC 18.4) 50 W
Long-term max power (IEC 18.2) 80 W
Voice Coil & Magnet Data
Voice coil diameter  35.5 mm
Voice coil height  15 mm
Voice coil layers  2
Height of gap  6 mm
Linear excursion  ± 4.5 mm
Max mech. excursion  ± - mm
Unit weight  1.53 kg
