3" Ultra-Thin Carbon Cone Woofer

AUGWL0008-JN06

Features
3”, Plastic Frame
1” CCAW Voice Coil, Aluminum Former
PULP and Carbon Cone Design
Neodymium Magnet Motor System
Slim Design (Patented)
Low Distortion (<3%)
Size
3 Inch
Fs
135 Hz
Re
6.82 Ohms
Sensitivity
84 dB
Quality Factor
0.97 Qts
Rated Power
5 W
  • Description
  • Simulation
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

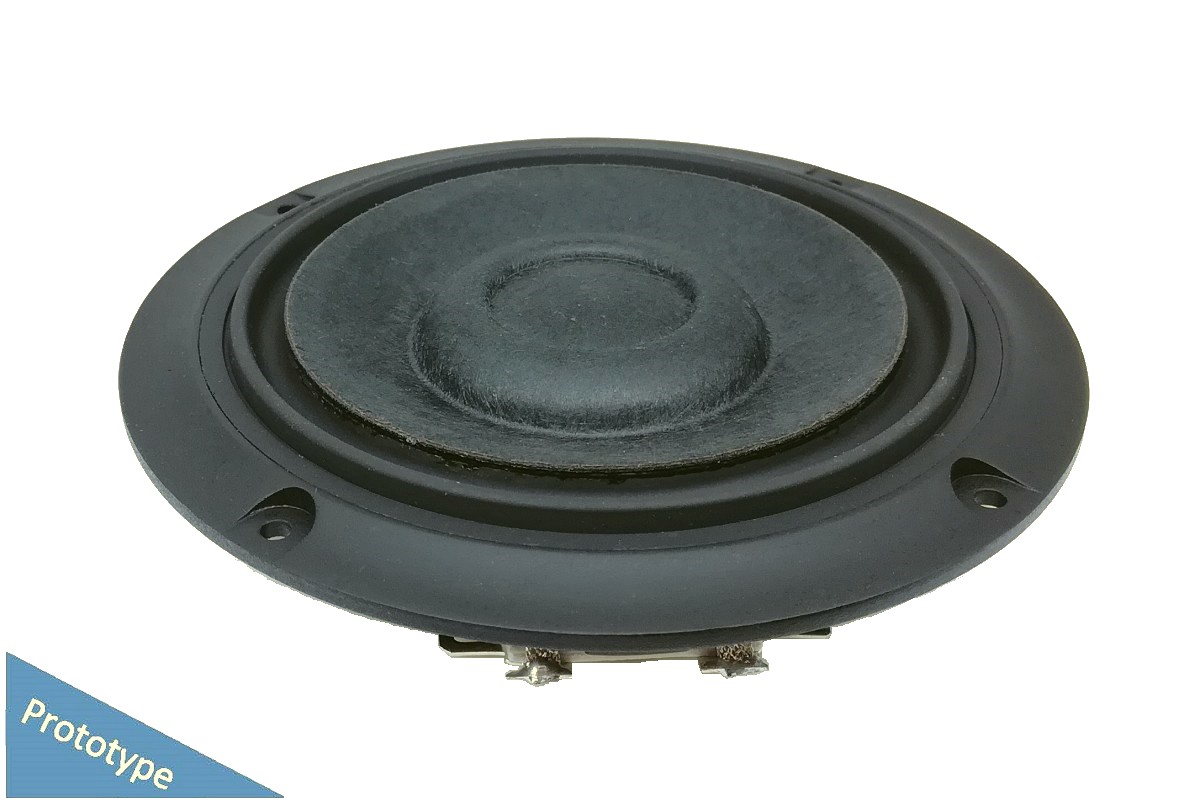

This 3 inch Woofer, features 1 inch voice coil with CCAW, Aluminum former, and Neodymium magnet motor system. The main cone body uses PULP with the carbon fiber to make sure the driver has a better stiffness and lower distortion. What’s more, U-yoke is embedded in the bracket to reduce overall height without affecting amplitude, and the overall design meets the requirements for ultra-thin performance.

Family
Range
AUGWL0008-JN06

T-S Parameters
Resonance frequency [fs] 136.3 Hz
Mechanical Q factor [Qms] 7.064
Electrical Q factor [Qes] 1.122
Total Q factor [Qts]  0.968
Force factor [Bl] 5.185 Tm
Mechanical resistance [Rms] 0.638 kg/s
Moving mass [Mms]  5.265 g
Compliance [Cms] 0.259 mm/N
Effective diaph. diameter [D]  72 mm
Effective piston area [Sd] 40.72 cm²
Equivalent volume [Vas] 0.6073 l
Sensitivity (2.83V/1m)  84 dB
Ratio Bl/√Re 2.006 N/√W
Ratio fs/Qts

140.81 Hz

Electrical Data
Nominal impedance [Zn]  8 Ω
Minimum impedance [Zmin]  6.46 Ω
Maximum impedance [Zo] 38.09 Ω
DC resistance [Re] 6.82 Ω
Voice coil inductance [Le]  0.487 mH
Power Handling
100h RMS noise test (IEC 18.4) 5 W
Long-term max power (IEC 18.2) 10 W
Voice Coil & Magnet Data
Voice coil diameter 25.4 mm
Voice coil height 6.3 mm
Voice coil layers 4
Height of gap 4 mm
Linear excursion ± 1.1 mm
Max mech. excursion ± 4.0 mm
Unit weight 0.126 kg
