1.5" Aluminum Cone Fullrange

AUGFL2003-JN01

Feature
1.5", Aluminum Die-cast Frame
0.8" CCAW Voice Coil, Aluminum Former
Aluminum Cone, Rubber Surround
Neodymium Magnet Motor System
Low Distortion(<1.5%)
Effective Frequency Band:180Hz-40KHz
Size
1.5 Inch
Fs
180 Hz
Re
4 Ohms
Sensitivity
83 dB
Quality Factor
0.49 Qts
Rated Power
5 W
  • Description

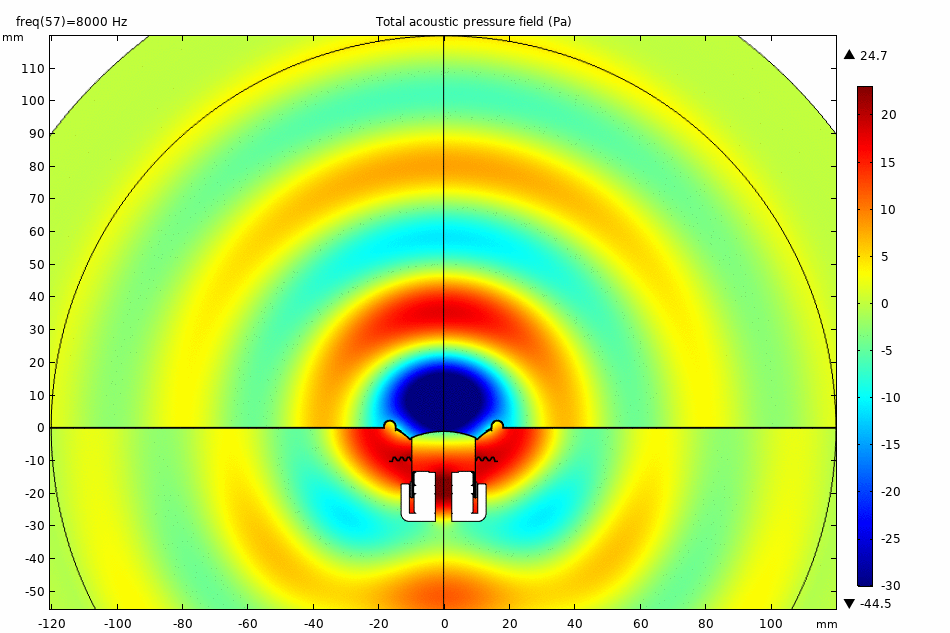

  • Simulation
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

This Fullrange series consisted with  4 types 1.5/2/2.5/3 inch drivers. With this unique 1.5 inch driver, it features 1 inch CCAW voice coil, Aluminum diaphragm with rubber surround, Neodymium magnet motor system to extend the high frequency response up to 40KHz with low distortion. This finest unit is designed for Premium speaker applications.

Family
Range
Characteristics
AUGFL2003-JN01

T-S Parameters
Resonance frequency [fs] 180 Hz
Mechanical Q factor [Qms] 2.465
Electrical Q factor [Qes] 0.609
Total Q factor [Qts]  0.488
Force factor [Bl] 2.496 Tm
Mechanical resistance [Rms] 0.481 kg/s
Moving mass [Mms]  1.027 g
Compliance [Cms] 0.732 mm/N
Effective diaph. diameter [D]  32.9 mm
Effective piston area [Sd] 8.5 cm²
Equivalent volume [Vas] 0.075 l
Sensitivity (2.83V/1m)  83 dB
Ratio Bl/√Re 1.395 N/√W
Ratio fs/Qts 376 Hz
Electrical Data
Nominal impedance [Zn]  4 Ω
Minimum impedance [Zmin]  3.42 Ω
Maximum impedance [Zo] 13.65 Ω
DC resistance [Re] 3.2 Ω
Voice coil inductance [Le]  0.026 mH
Power Handling
100h RMS noise test (IEC 18.4) 5 W
Long-term max power (IEC 18.2) - W
Voice Coil & Magnet Data
Voice coil diameter 19.4 mm
Voice coil height 4.7 mm
Voice coil layers 2
Height of gap 2.5 mm
Linear excursion ± 1.1 mm
Max mech. excursion ± - mm
Unit weight 0.064 kg
AUGFL2003-JN01
