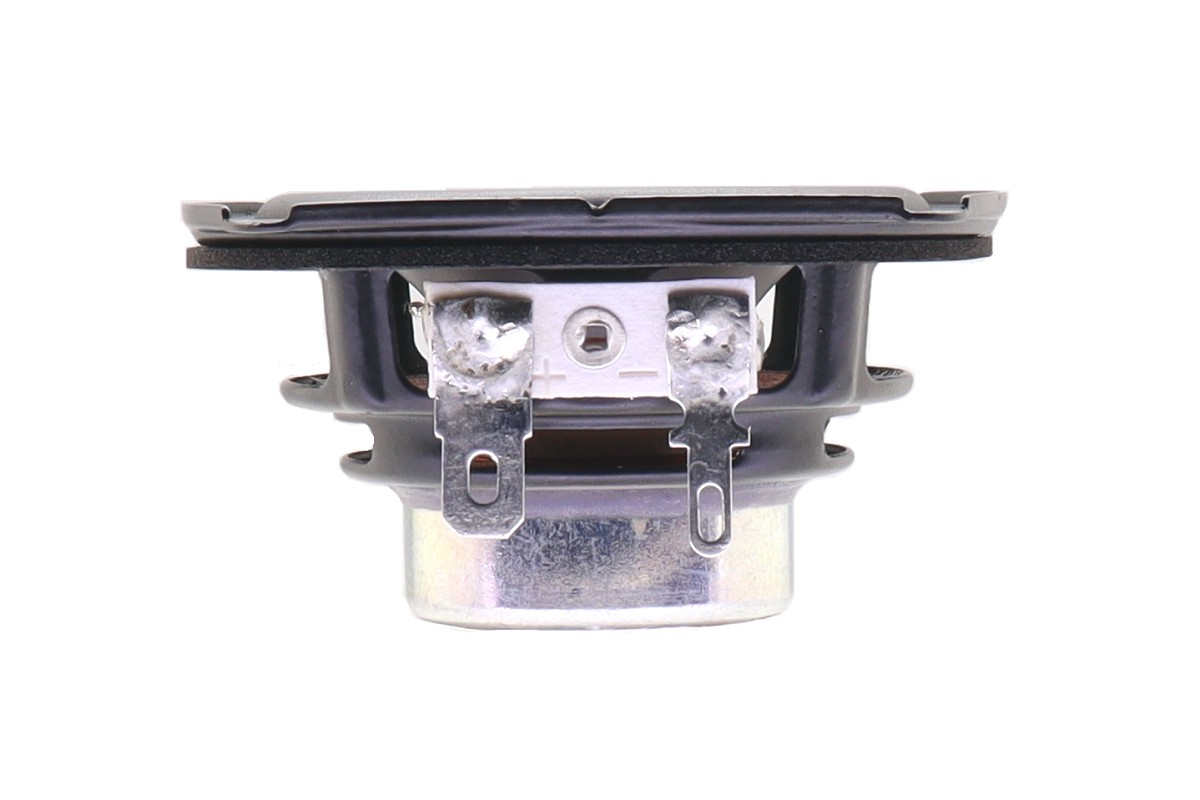

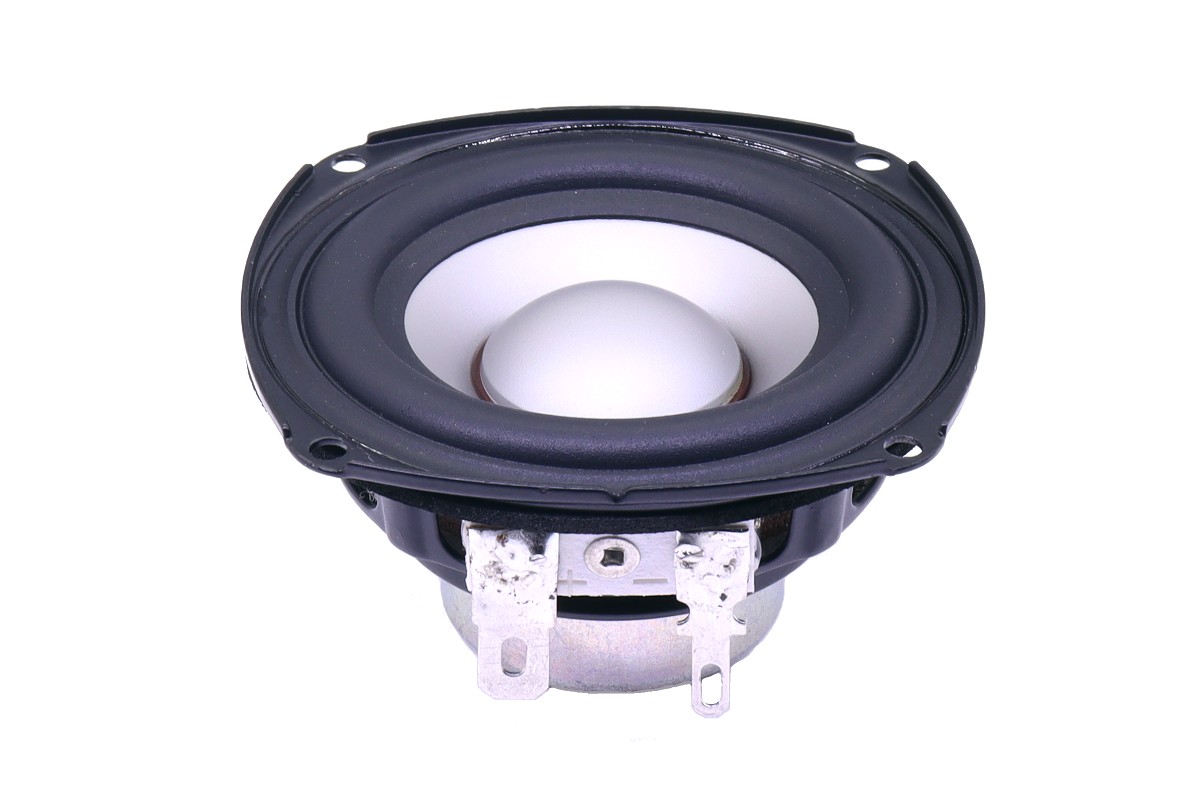

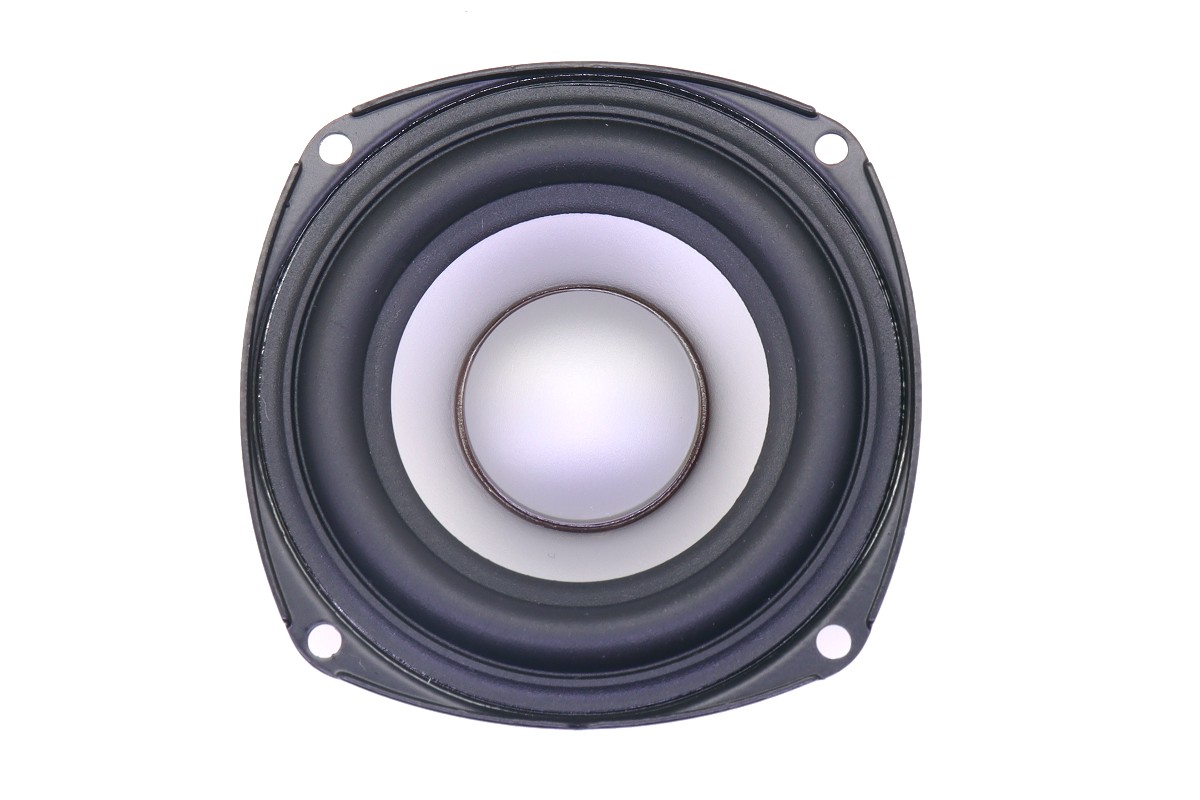

2" Aluminum Cone Fullrange

AUGFL2003-HM01

Features
2", Steel Frame
0.75" CCAW Voice Coil, Aluminum Former
Aluminum Cone, Rubber Surround
Neodymium Magnet Motor System
Low Distortion (<3%)
Size
2 Inch
Fs
135 Hz
Re
3 Ohms
Sensitivity
85 dB
Quality Factor
0.56 Qts
Rated Power
6 W
  • Description

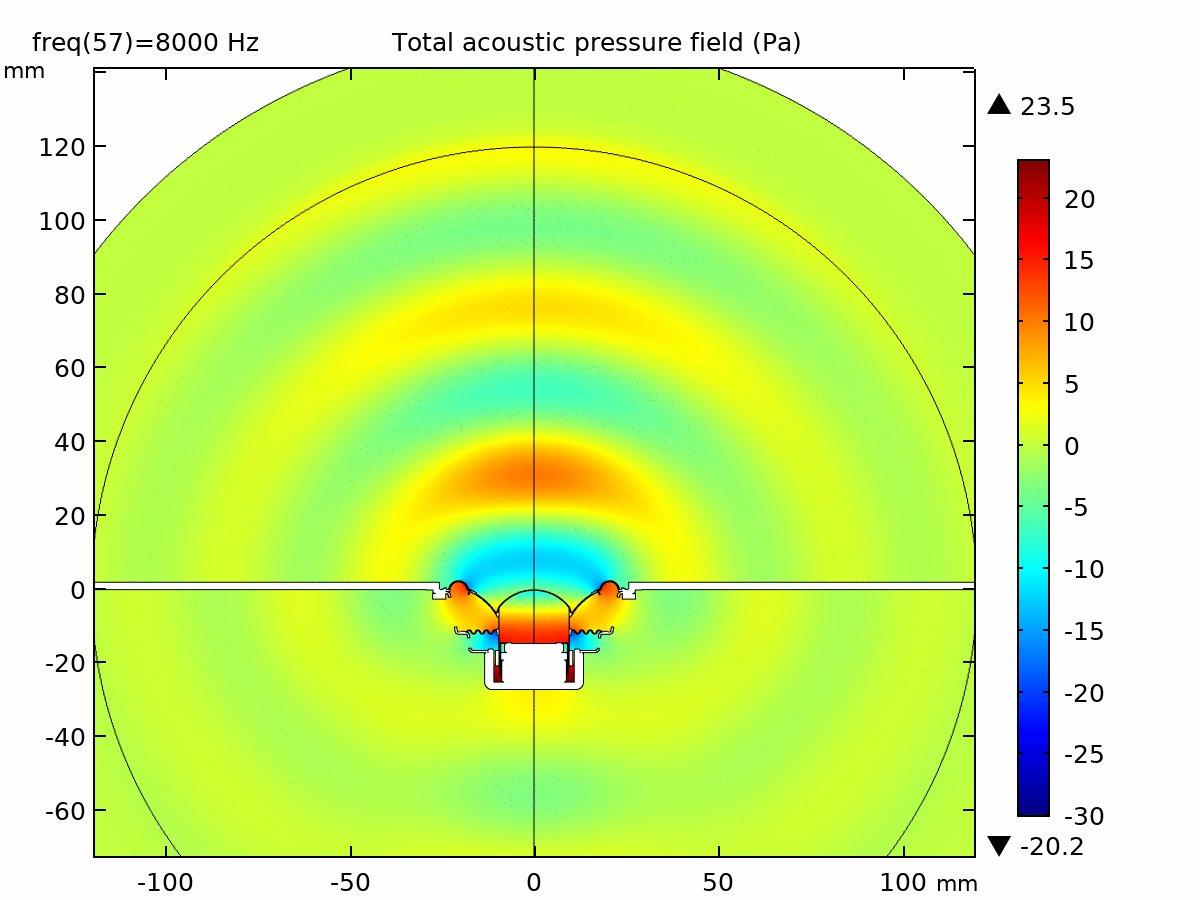

  • Simulation
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

This is a 2 inch 4 ohm with maximum 9W compact driver, it comprising 19mm voice coil with CCAW, Aluminum Cone body consist with NBR surround & Conex spider. A Neodymium motor structure. The continuous rated power handling of 6W with a peak power handling of 9W. This driver is perfect for use in any portable speaker applications.


Family
Range
Characteristics
AUGFL2003-HM01

T-S Parameters
Resonance frequency [fs] 134.7 Hz
Mechanical Q factor [Qms] 6.36
Electrical Q factor [Qes] 0.61
Total Q factor [Qts]  0.56
Force factor [Bl] 2.60 Tm
Mechanical resistance [Rms] 0.25 kg/s
Moving mass [Mms]  1.86 g
Compliance [Cms] 0.75 mm/N
Effective diaph. diameter [D]  41 mm
Effective piston area [Sd] 13.2 cm²
Equivalent volume [Vas] 0.1854 l
Sensitivity (2.83V/1m)  85 dB
Ratio Bl/√Re 0.98 N/√W
Ratio fs/Qts 240.54 Hz
Electrical Data
Nominal impedance [Zn]  3 Ω
Minimum impedance [Zmin]  3.52 Ω
Maximum impedance [Zo] 18.55 Ω
DC resistance [Re] 2.64 Ω
Voice coil inductance [Le]  0.069 mH
Power Handling
100h RMS noise test (IEC 18.4) 6 W
Long-term max power (IEC 18.2) 9 W
Voice Coil & Magnet Data
Voice coil diameter 19.03 mm
Voice coil height 4.2 mm
Voice coil layers 4
Height of gap 2 mm
Linear excursion ± 1.1 mm
Max mech. excursion ± 4 mm
Unit weight 0.057 kg
