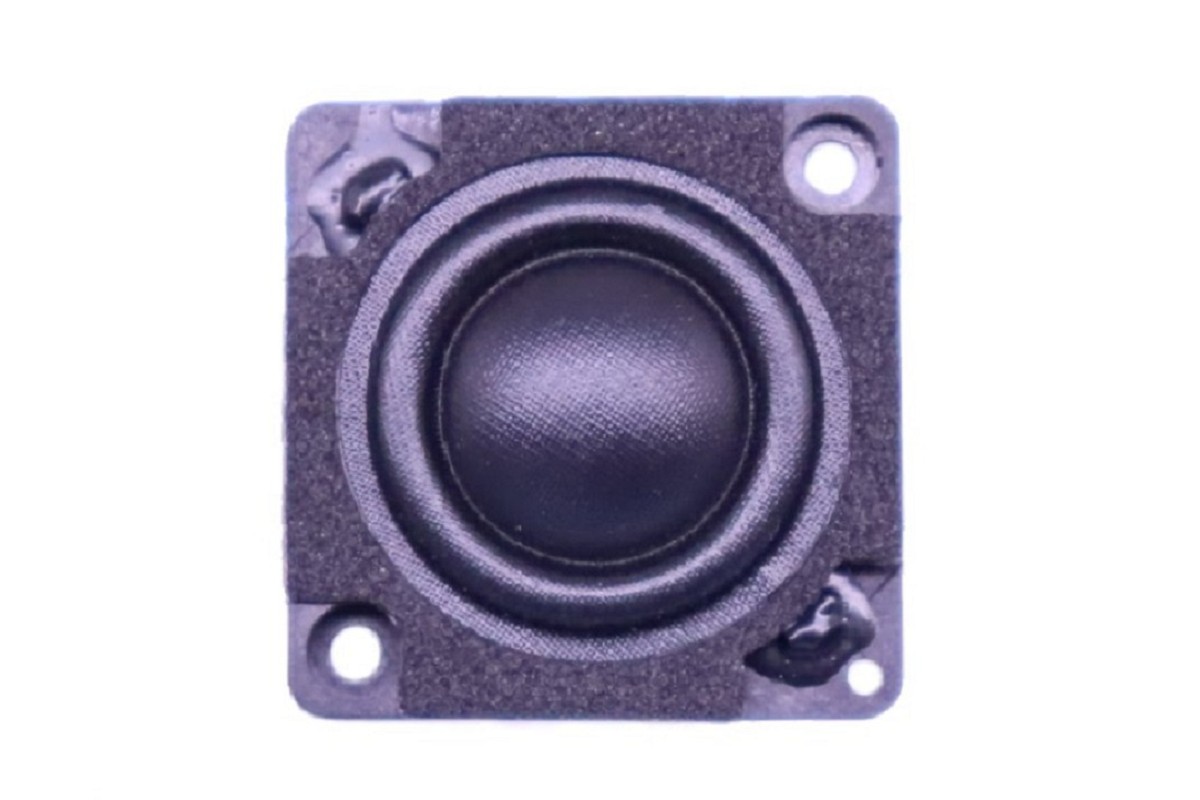

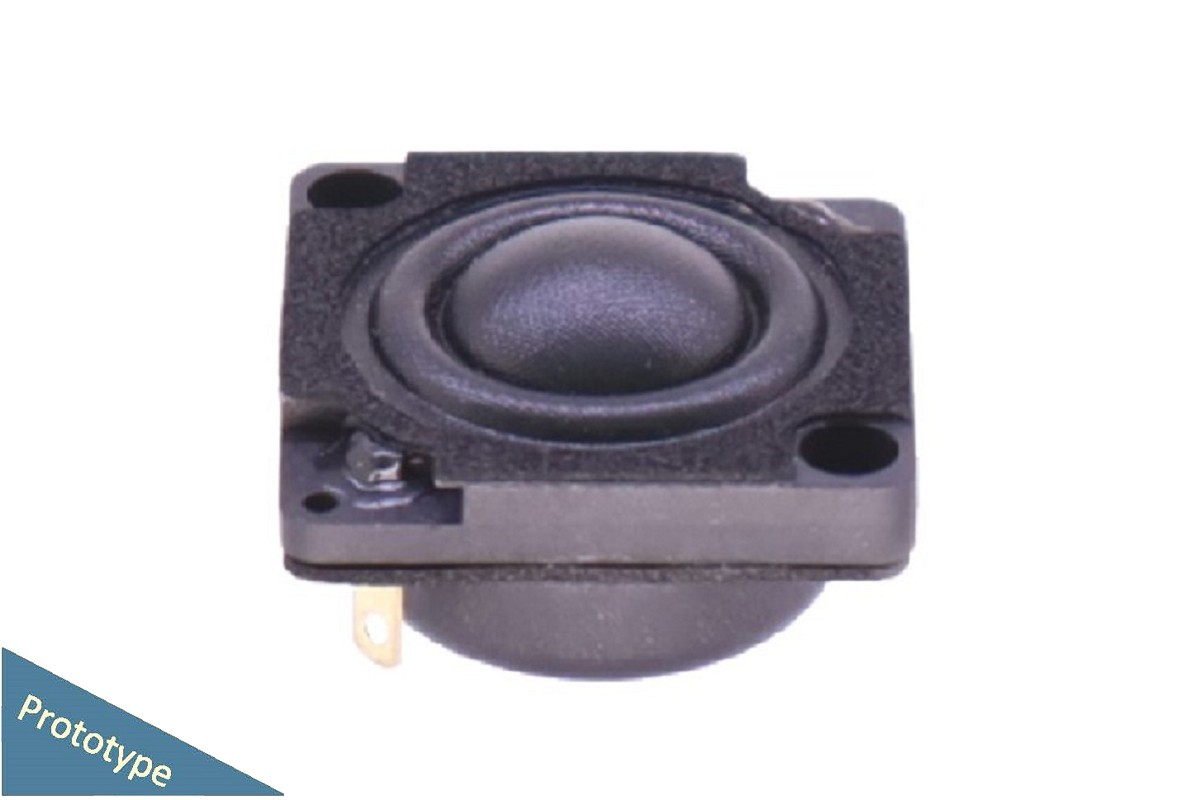

0.5” Textile Dome Tweeter
AUGDL1167-JN01
Features
0.8”, Plastic Frame
0.5” CCAW Voice Coil, Kapton Former
Textile Diaphragm
Neodymium Magnet Motor System
Power Handling with 2nd HP Filter @ 4000Hz
Parameters
Size
0.5 Inch
Fs
1480 Hz
Re
3.59 Ohms
Sensitivity
82 dB
Quality Factor
0.73 Qts
Rated Power
8 W
This compact 4 ohm dome tweeter have been newly designed with 0.5 inch EISVCCAW voice coil, upgraded Textile dome diaphragm and Neodymium ferro fluid magnet motor system to provide excellent sound experience. This splendid unit is the new benchmark for soundbar model.
Family
Range
Characteristics
| T-S Parameters | |
|---|---|
| Resonance frequency [fs] | 1480 Hz |
| Mechanical Q factor [Qms] | 0.87 |
| Electrical Q factor [Qes] | 4.46 |
| Total Q factor [Qts] | 0.73 |
| Force factor [Bl] | 0.83 Tm |
| Mechanical resistance [Rms] | 0.98 kg/s |
| Moving mass [Mms] | 0.09 g |
| Compliance [Cms] | 0.12 mm/N |
| Effective diaph. diameter [D] | 1.75 mm |
| Effective piston area [Sd] | 2.41 cm² |
| Equivalent volume [Vas] | 0.001 l |
| Sensitivity (2.83V/1m) | 82 dB |
| Ratio Bl/√Re | 0.43 N/√W |
| Ratio fs/Qts | 2020.29 Hz |
| Electrical Data | |
|---|---|
| Nominal impedance [Zn] | 4 Ω |
| Minimum impedance [Zmin] | 3.3 Ω |
| Maximum impedance [Zo] | 3.8 Ω |
| DC resistance [Re] | 3.59 Ω |
| Voice coil inductance [Le] | 0.02 mH |
| Power Handling | |
|---|---|
| 100h RMS noise test (IEC 18.4) | 5 W |
| Long-term max power (IEC 18.2) | 8 W |
| Voice Coil & Magnet Data | |
|---|---|
| Voice coil diameter | 13.28 mm |
| Voice coil height | 1.7 mm |
| Voice coil layers | 2 |
| Height of gap | 1.5 mm |
| Linear excursion | ± 0.1 mm |
| Max mech. excursion | ± - mm |
| Unit weight | 0.015 kg |
