FSBB10040-0B13
FSBB10040-0B13
Headphone

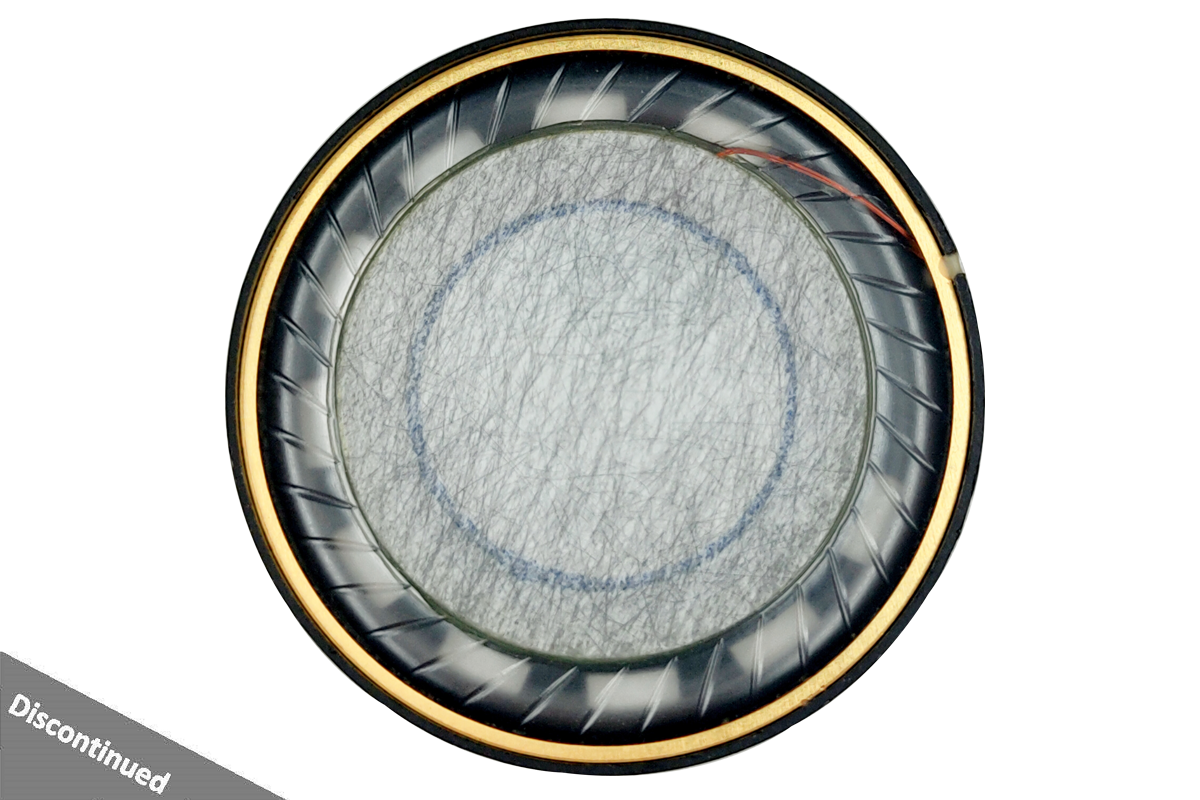

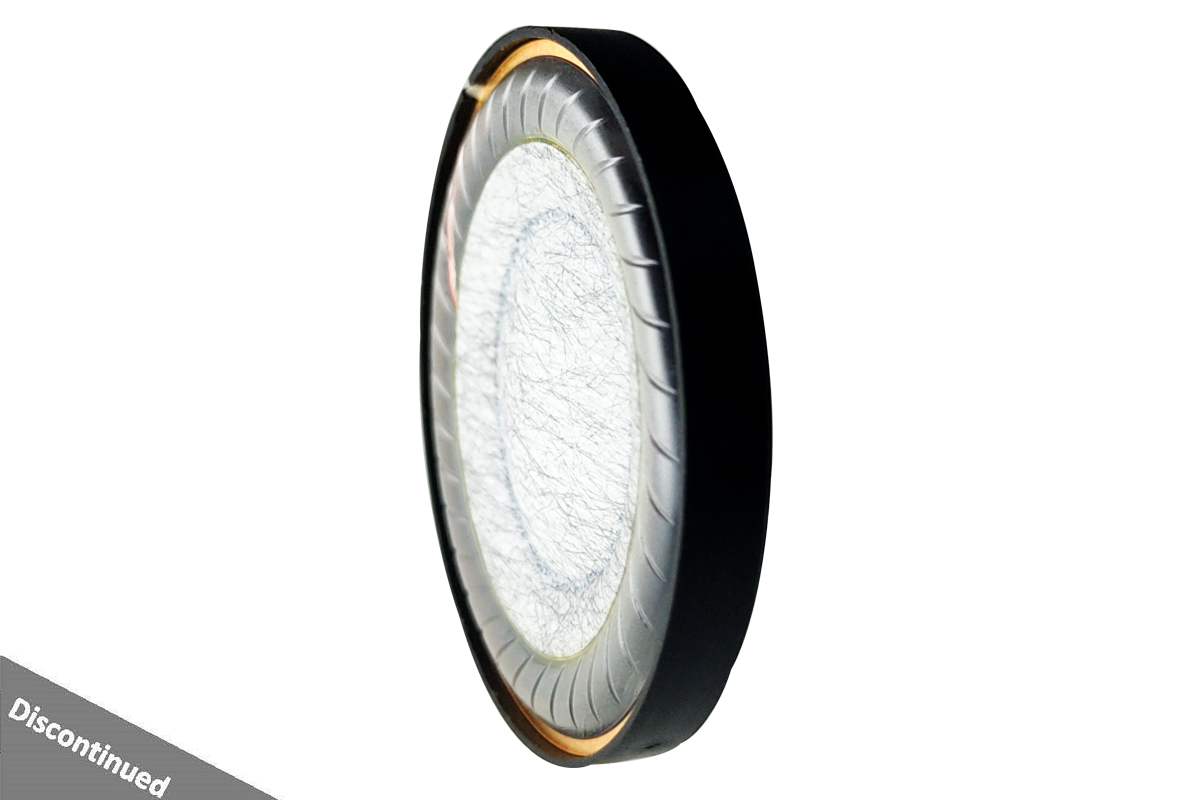

40mm Carbon Fiber Diaphragm Over Ear

FSBB10040-0B13

Feature
40mm Transducer Frame.
CCAW Voice Coil
10u PU+9u PEEK+0.075AZM
Size
40 mm
Fs
50 Hz
Sensitivity
126 dB
  • Description
  • Simulation
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

The sound film is designed with imported TPU and nickel plated PEN.TPU will have a good dive in the bass, thick bass.On the one hand, the PEN nickel plating reduces the vibration mass, and the horn has a fast instantaneous shell reaction speed at high frequency.On the other hand increases the ball top rigidity.It can suppress the high frequency membrane shell and smooth the high frequency curve.The whole product is balanced between the driving component and the vibration component, so the horn has low distortion and good high frequency response.

.

Family
Range
Characteristics

Features
Transducer: CY-Ω-C
Insert Molding: NON
Injection Basket/Yoke NON
YOKE Ø mmSPCC/CR3
Magnet Ø mmNdFeB-N35
Washer (T-Plater) Ø mm SPCC/CR3
PCB Ø mm FR4
Diaphragm Ø mm(MX)
Voice Coil Ø mmDCCA
Grill Cover Ø mm SUS
Mesh NBC
Transducers Properties
Transducer Ø mm
D.C.R. ±%Ω
Sensitivity ±dB (at 1KHz 1mW)
Frequency Response KHZ
Distortion THD (KHz) ≤5% Rated
Rated Input Power mW
Max Input Power mW
Buzz and Rattles Shall Be Rated Input Power
3mW Program Source Or
Sine Wave



FSBB10040-0B13
