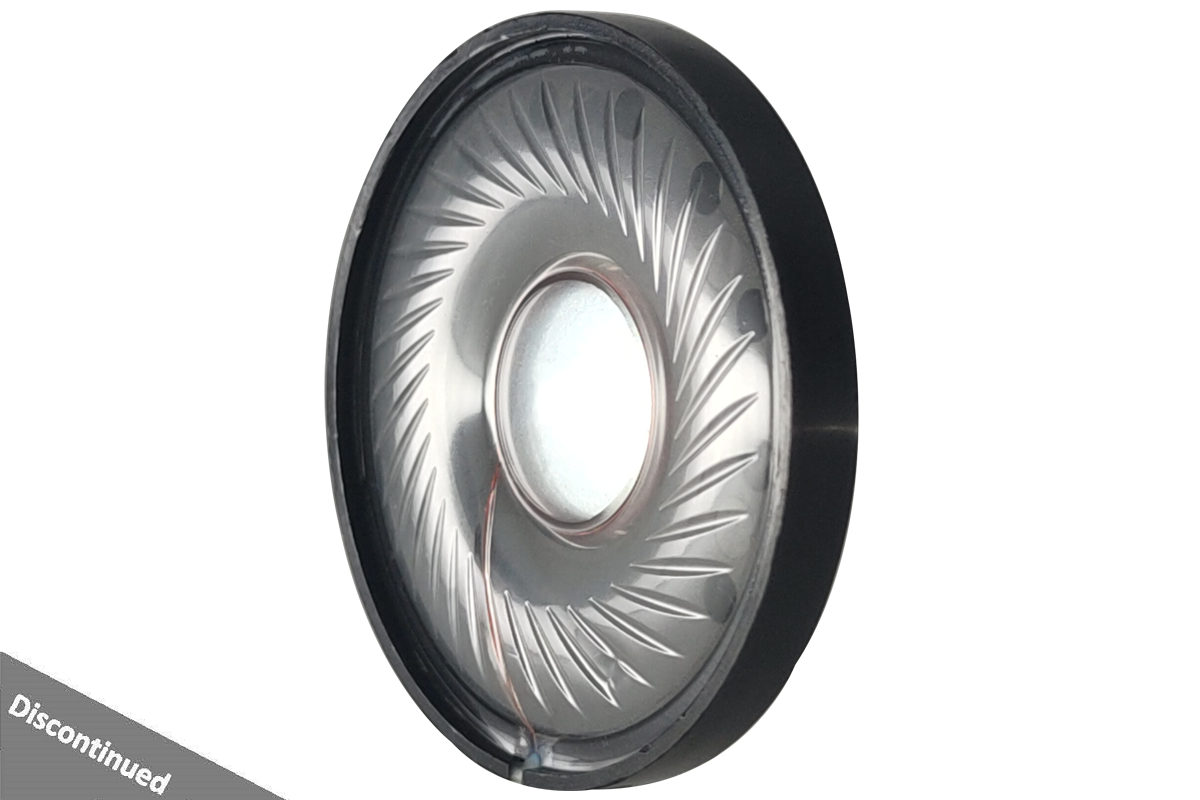

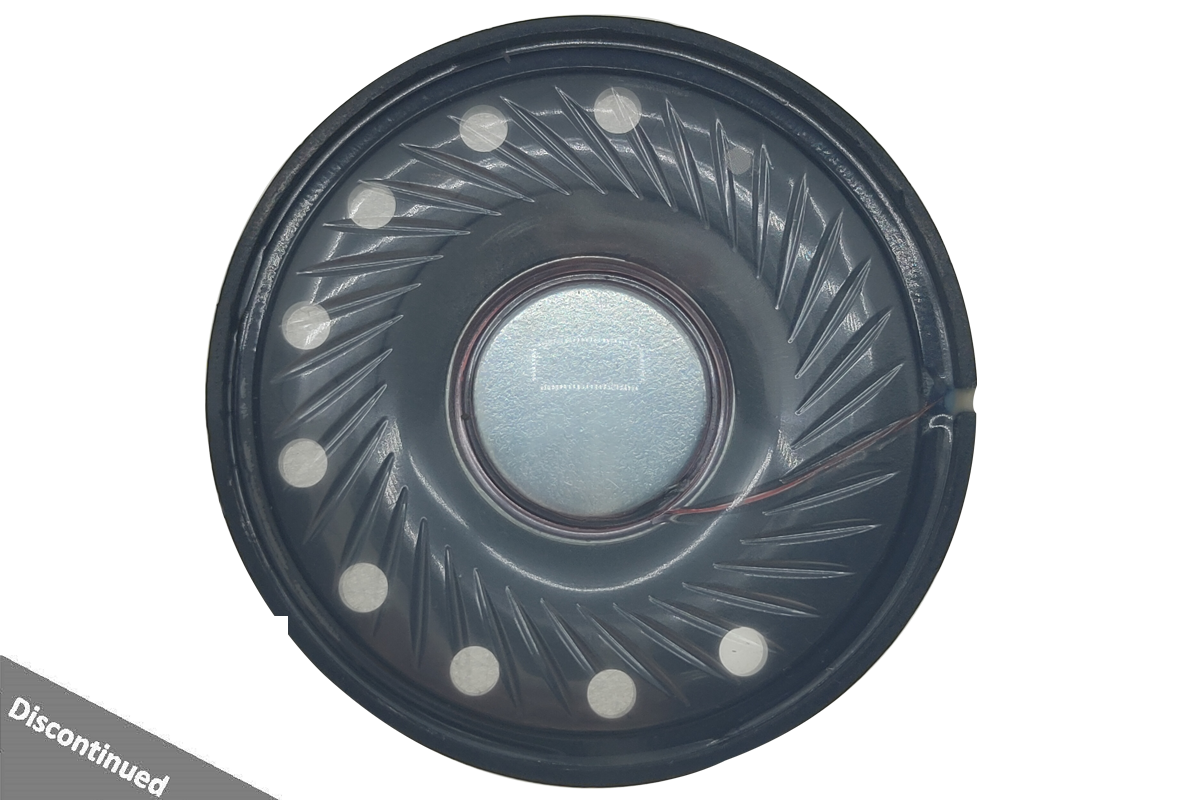

FSBB10040-0B06
FSBB10040-0B06
Headphone
40mm PET Over Ear

FSBB10040-0B06

Feature
40mm Transducer Frame.
Ø 13.6mmDCCA.
Ø 37.75mmPET.
Size
40 mm
Fs
135 Hz
Sensitivity
108 dB
  • Description
  • Simulation
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

This is 40 mm sensor, suitable for TWS and ear headphones, impedance 32 Ω, adopts the DCCA copper clad aluminum wire circle, promote new and high frequency expansion in the clear.

Family
Range

Features
Transducer CY-Ω-C
Insert Molding NON
Injection Basket/Yoke NON
YOKE Ø mmSPCC/CR3
Magnet Ø mmNdFeB-N35
Washer (T-Plater) Ø mm SPCC/CR3
PCB Ø mm FR4
Diaphragm Ø mm(MX)
Voice Coil Ø mmDCCA
Grill Cover Ø mm SUS
Mesh NBC
Transducers Properties
Transducer Ø mm
D.C.R. ±%Ω
Sensitivity ±dB (at 1KHz 1mW)
Frequency Response KHZ
Distortion THD (KHz) ≤5% Rated
Rated Input Power mW
Max Input Power mW
Buzz and Rattles Shall Be Rated Input Power
3mW Program Source Or
Sine Wave
