ASDFD0001-3200
ASDFD0001-3200
Headphone

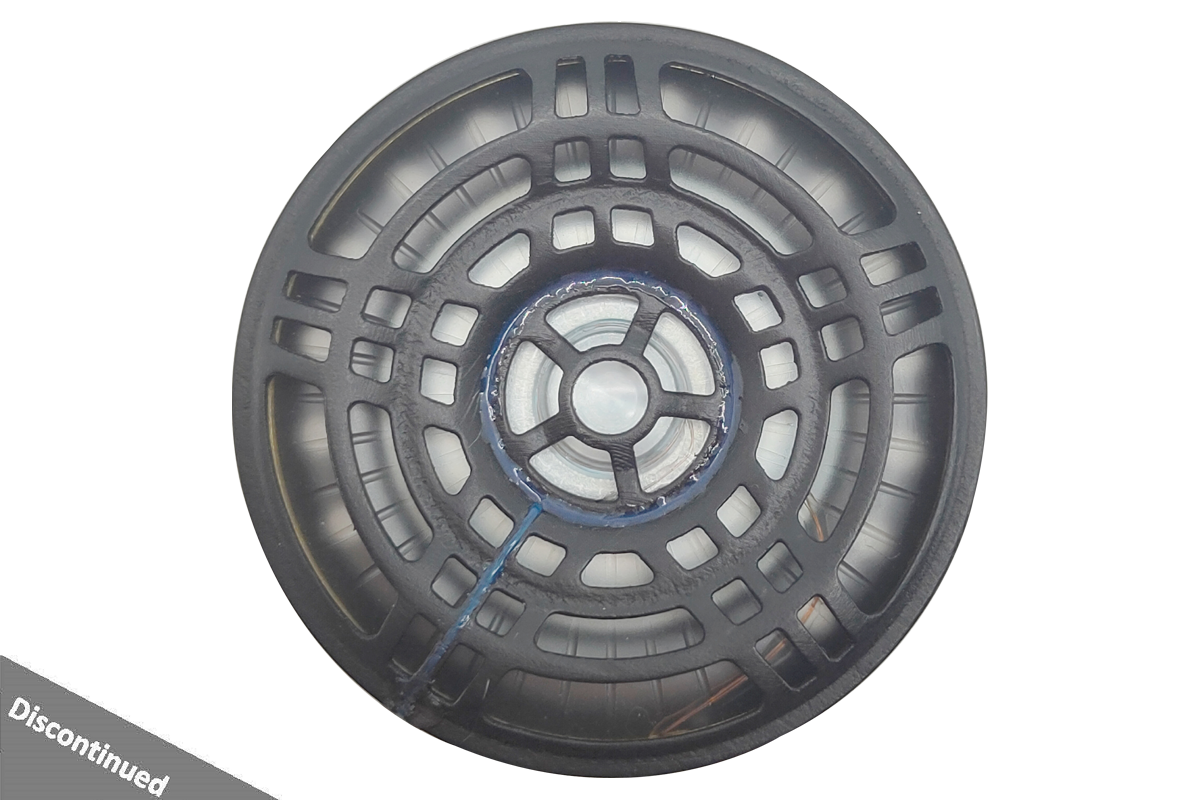

40mm Dual-Concentric Coaxial Over Ear

ASDFD0001-3200

Feature
40mm coaxial dichotomy Frame.
22.1mm Voice Coil &7.6mm Voice Coil.
20μPU + 12uPEN Diaphragm.
Size
40 mm
Fs
180 Hz
Sensitivity
119 dB
  • Description
  • Simulation
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

Double diaphragm horizontal coaxial system, middle and low frequencies and high frequencies are driven by two diaphragm respectively, and its own frequency dividing line can restore the sound more vividly. The two diaphragm are located on the same horizontal plane, and the high and low frequency sound can reach the ear at the same time.

Family
Range
Characteristics

Features
Transducer CY-Ω-C
Insert Molding NON
Injection Basket/Yoke NON
YOKE Ø mmSPCC/CR3
Magnet Ø mmNdFeB-N35
Washer (T-Plater) Ø mm SPCC/CR3
PCB Ø mm FR4
Diaphragm Ø mm(MX)
Voice Coil Ø mmDCCA
Grill Cover Ø mm SUS
Mesh NBC
Transducers Properties
Transducer Ø mm
D.C.R. ±%Ω
Sensitivity ±dB (at 1KHz 1mW)
Frequency Response KHZ
Distortion THD (KHz) ≤5% Rated
Rated Input Power mW
Max Input Power mW
Buzz and Rattles Shall Be Rated Input Power
3mW Program Source Or
Sine Wave
