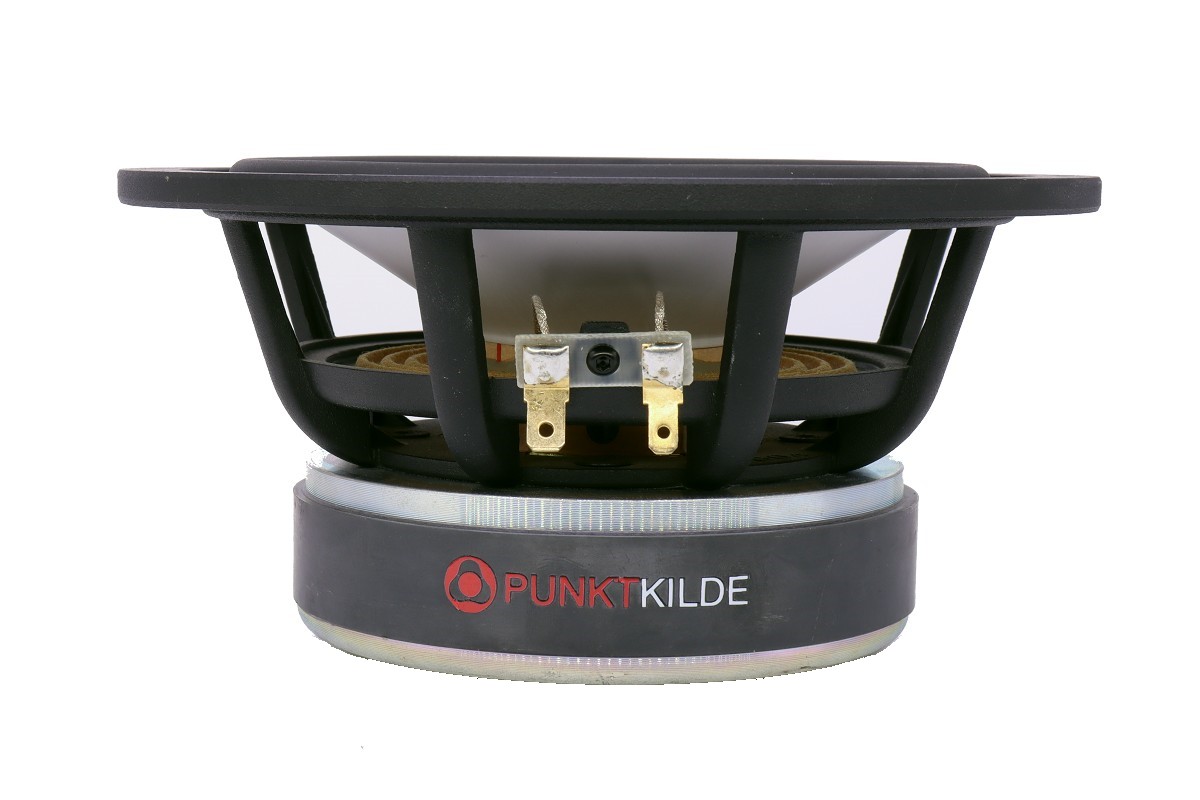

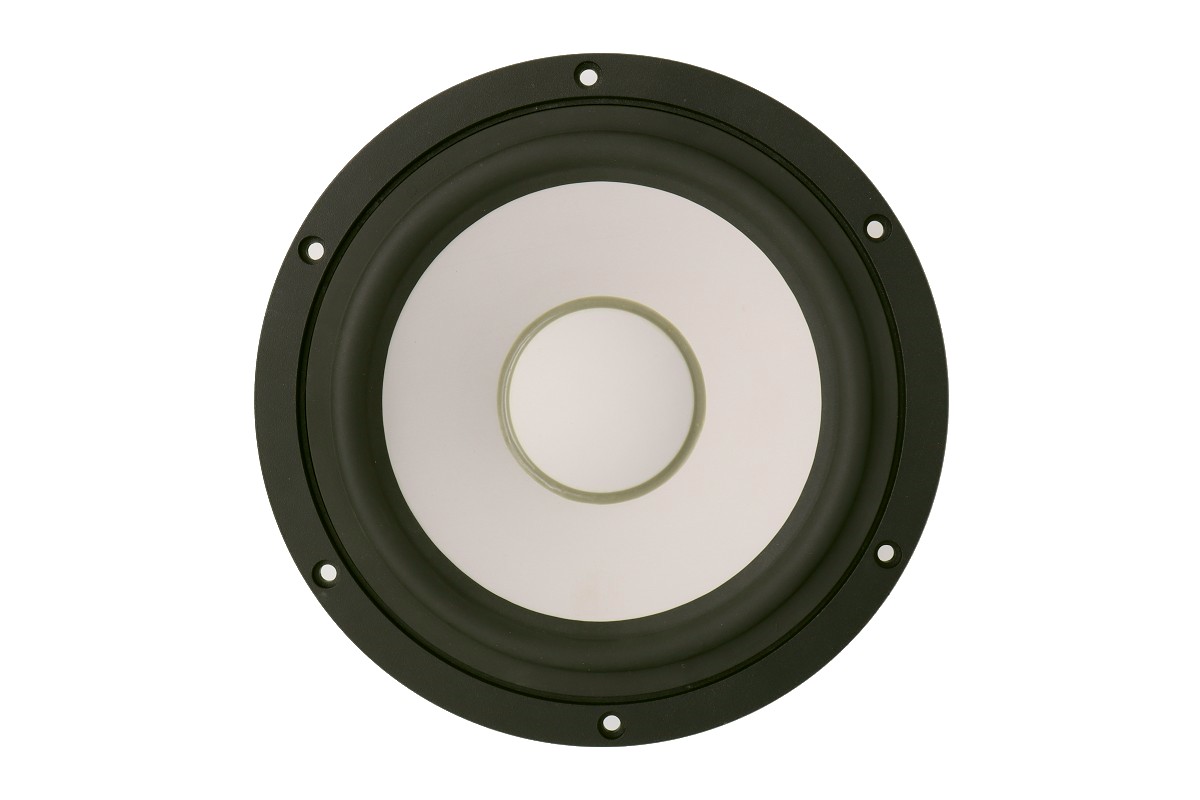

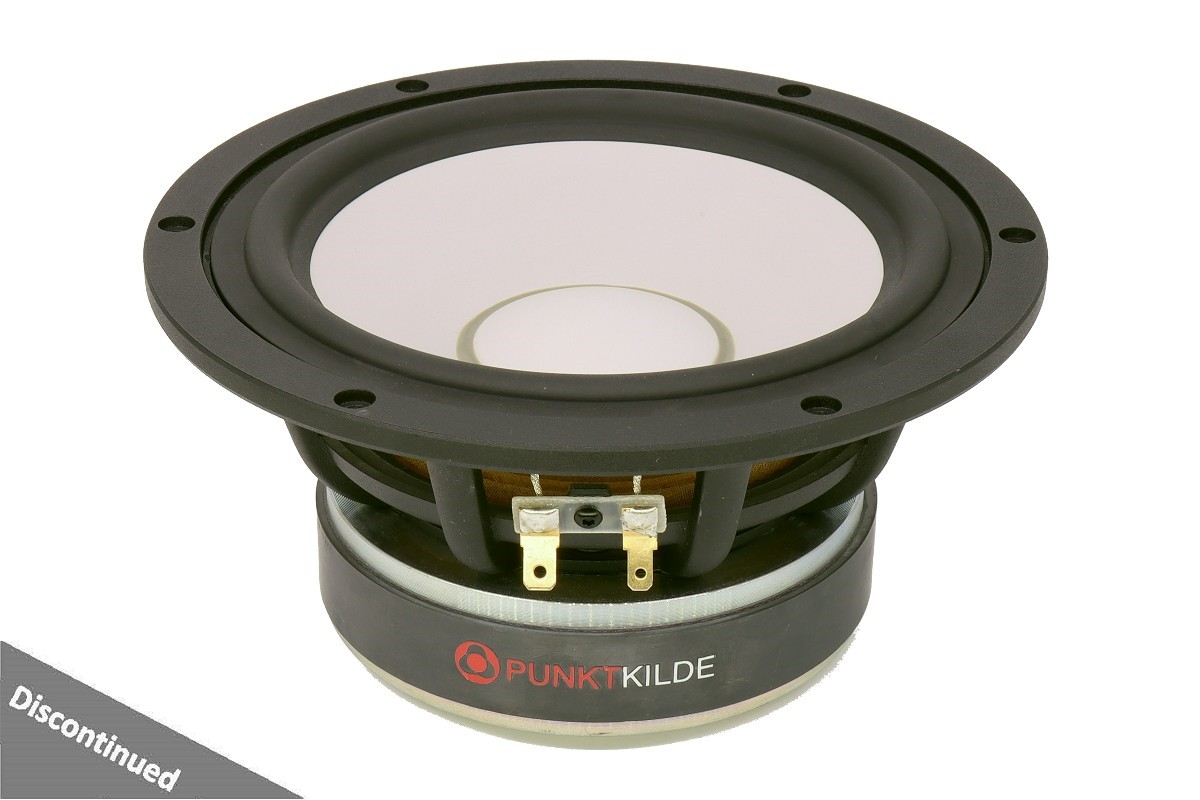

6.5” Magnesium-Lithium Cone Woofer

AUGWL0016-JN02

Features
6.5”, Aluminum Die-cast  Frame
2” CCAW Voice Coil, Aluminum Former
Mg-Li Alloy Cone, Rubber Surround
Ferrite Magnet Motor System
Target Frequency 30Hz~4KHz
Low Distortion (<1%)
Size
6.5 Inch
Fs
40 Hz
Re
3.38 Ohms
Sensitivity
90 dB
Quality Factor
0.32 Qts
Rated Power
80 W
  • Description
  • Simulation
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

This 6.5 inch Aluminum Alloy Woofer, Aluminum Die-Cast Frame with Mg-Li Alloy cone. It has good
process ability and high yield for mass production. Because of this special raw material structure and
unique processing technology, from magnesium lithium metal foil, the attributes of  Magnesium Lithium
offer high strength, good rigidity, good heat resistance, low density and so on.

Family
Range
Characteristics
AUGWL0016-JN02

T-S Parameters
Resonance frequency [fs] 42.2 Hz
Mechanical Q factor [Qms] 2.374
Electrical Q factor [Qes] 0.372
Total Q factor [Qts]  0.322
Force factor [Bl] 7.065 Tm
Mechanical resistance [Rms]  2.31kg/s
Moving mass [Mms]   20.69 g
Compliance [Cms]  0.686mm/N
Effective diaph. diameter [D]   132.6 mm
Effective piston area [Sd]  138.09 cm²
Equivalent volume [Vas] 18.51 l
Sensitivity (2.83V/1m)   90 dB
Ratio Bl/√Re  3.84N/√W
Ratio fs/Qts  131.05 Hz
Electrical Data
Nominal impedance [Zn]   4 Ω
Minimum impedance [Zmin]   4.3 Ω
Maximum impedance [Zo]  24.1 Ω
DC resistance [Re]  3.38 Ω
Voice coil inductance [Le]   0.08 mH
Power Handling
100h RMS noise test (IEC 18.4) 80 W
Long-term max power (IEC 18.2) 100 W
Voice Coil & Magnet Data
Voice coil diameter  49.55 mm
Voice coil height  16 mm
Voice coil layers  2
Height of gap  6 mm
Linear excursion ± 5 mm
Max mech. excursion ± 12.5 mm
Unit weight 2.4  kg
