ASDFD0008-3201
ASDFD0008-3201
Headphone
40mm PET Over Ear

ASDFD0008-3201

Features
40mm Transducer Frame.
16.5mm CCAW Voice Coil
19u PET
Size
40 mm
Fs
80 Hz
Sensitivity
124 dB
  • Description
  • Simulation
  • Measure Chart
  • Specification

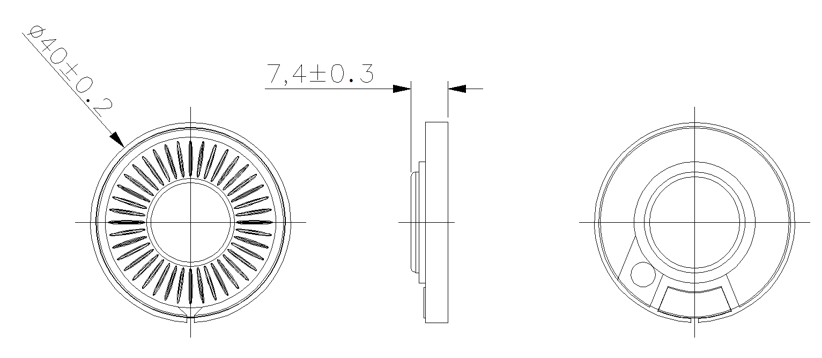

  • Mechanical Drawing
SPEC SHEET

This is a 40 mm Transducer, 19 u PET diaphragm, obtained the good effect of intermediate frequency, and has a lower distortion, it is applicable to the OVER the EAR and communications headset, 32 Ω impedance.

Family
Range

Features
Transducer CY-Ω-C
Insert Molding NON
Injection Basket/Yoke NON
YOKE Ø mmSPCC/CR3
Magnet Ø mmNdFeB-N35
Washer (T-Plater) Ø mm SPCC/CR3
PCB Ø mm FR4
Diaphragm Ø mm(MX)
Voice Coil Ø mmDCCA
Grill Cover Ø mm SUS
Mesh NBC
Transducers Properties
Transducer Ø mm
D.C.R. ±%Ω
Sensitivity ±dB (at 1KHz 1mW)
Frequency Response KHZ
Distortion THD (KHz) ≤5% Rated
Rated Input Power mW
Max Input Power mW
Buzz and Rattles Shall Be Rated Input Power
3mW Program Source Or
Sine Wave
