0.8" Textile Dome Tweeter

AUGDL0002-HM01

Features
0.8", Plastic Frame
0.8" CCAW Voice Coil, Aluminum Former
Textile Dome Diaphragm
Dual Neodymium Magnet Motor System
Size
0.8 Inch
Fs
830 Hz
Re
4 Ohms
Sensitivity
87 dB
Quality Factor
1.26 Qts
Rated Power
5 W
  • Description

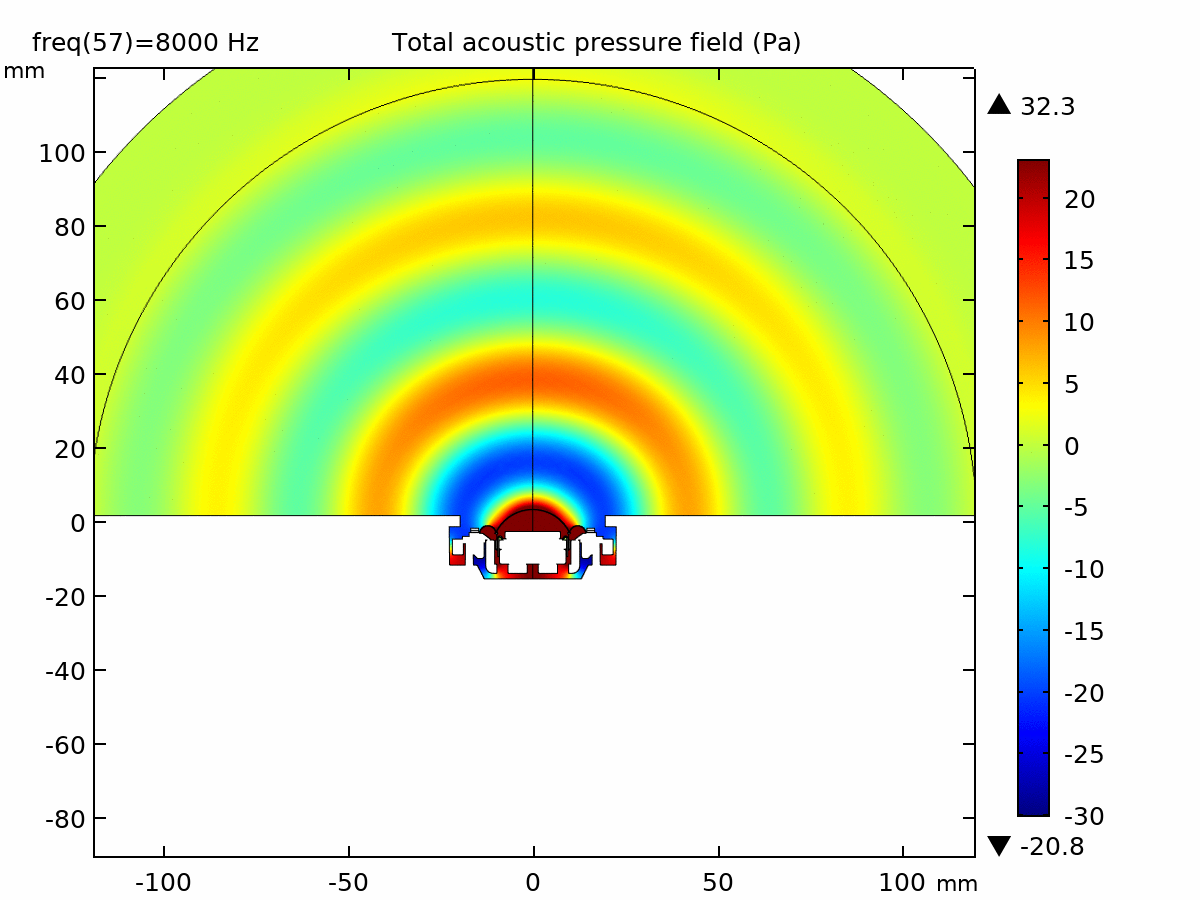

  • Simulation
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

This ultimate 0.8 inch, 4 ohm tweeter have been newly customized with 0.8 inch CCAW voice coil, Soft Silk Dome Diaphragm with Neodymium motor system to provide great sound experience. This fine unit is the new benchmark for conference audio systems.

Family
Range
AUGDL0002-HM01

T-S Parameters
Resonance frequency [fs] 830 Hz
Mechanical Q factor [Qms] 2.95
Electrical Q factor [Qes] 2.18
Total Q factor [Qts]  1.26
Force factor [Bl] 1.45 Tm
Mechanical resistance [Rms] 0.42 kg/s
Moving mass [Mms]  0.24 g
Compliance [Cms] 0.15 mm/N
Effective diaph. diameter [D]  24.1 mm
Effective piston area [Sd] 4.56 cm²
Equivalent volume [Vas] 0.0045 l
Sensitivity (2.83V/1m)  87 dB
Ratio Bl/√Re 0.65 N/√W
Ratio fs/Qts 659 Hz
Electrical Data
Nominal impedance [Zn]  4 Ω
Minimum impedance [Zmin]  3.72 Ω
Maximum impedance [Zo] 6.7 Ω
DC resistance [Re] 4.98 Ω
Voice coil inductance [Le]  0.01 mH
Power Handling
100h RMS noise test (IEC 18.4) 5 W
Long-term max power (IEC 18.2)  - W
Voice Coil & Magnet Data
Voice coil diameter 19.4 mm
Voice coil height 3.6 mm
Voice coil layers 2
Height of gap 2.5 mm
Linear excursion ± 0.55 mm
Max mech. excursion ± - mm
Unit weight 0.052 kg
