ASDFD000C-3202
ASDFD000C-3202
Headphone
12mm Ultra-Thin Series TWS

ASDFD000C-3202

Feature
12mm Transducer Frame.
6.6mm Voice Coil SDHT.
4µTPU+16µPEN Nickel plating.
Size
12.00 mm
Fs
230.0 Hz
Re
32 Ohms
Sensitivity
106.00 dB
  • Description
  • Simulation
  • Measure Chart
  • Specification

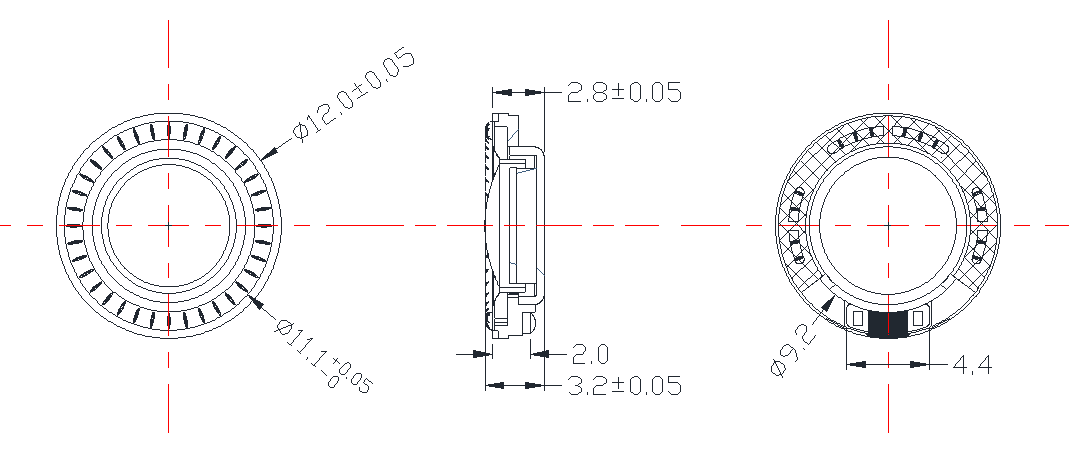

  • Mechanical Drawing
SPEC SHEET

The sound film is designed with imported TPU and nickel plated PEN.TPU will have a good dive in the bass, thick bass.On the one hand, the PEN nickel plating reduces the vibration mass, and the horn has a fast instantaneous shell reaction speed at high frequency.On the other hand increases the ball top rigidity.It can suppress the high frequency membrane shell and smooth the high frequency curve.The whole product is balanced between the driving component and the vibration component, so the horn has low distortion and good high frequency response.

Family
Range
Characteristics

ASDFD000C-3202
